100 Series Signal Beacon
90 Series Signal Beacon

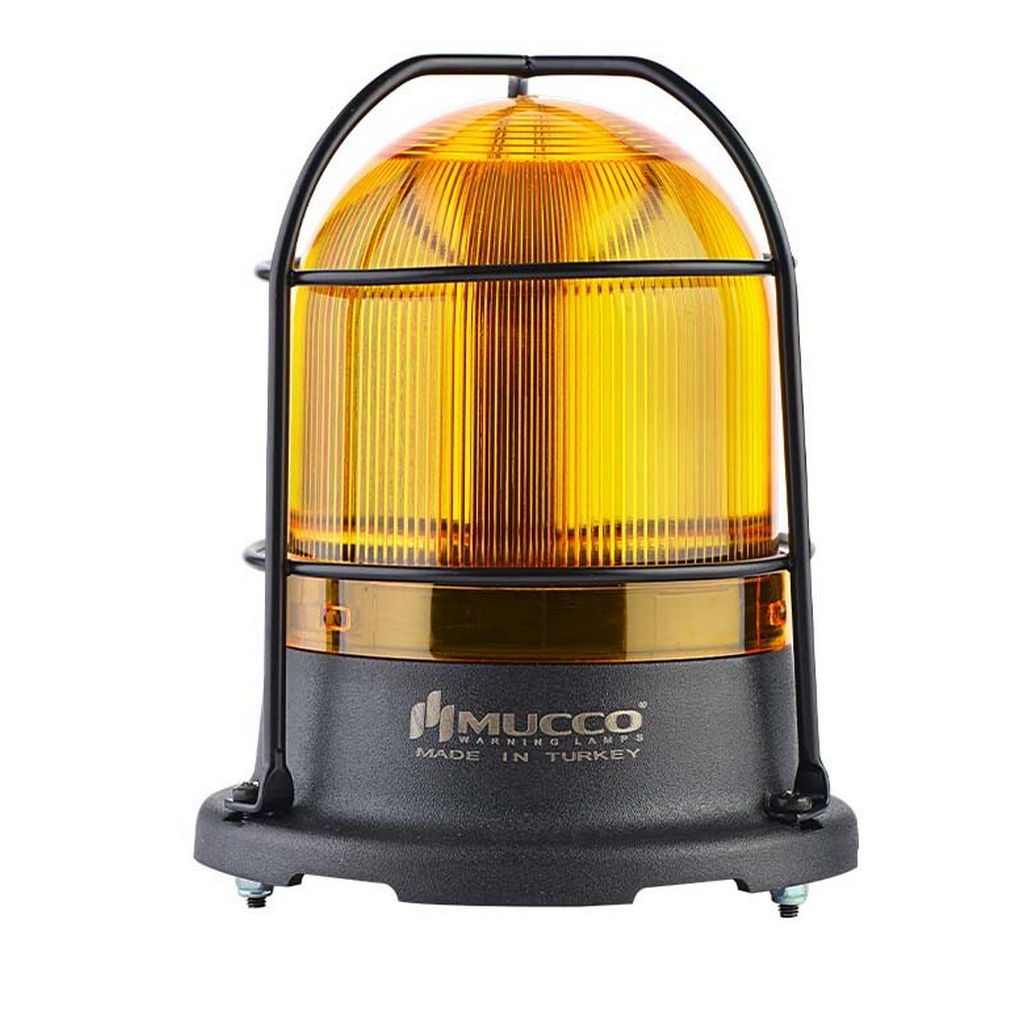

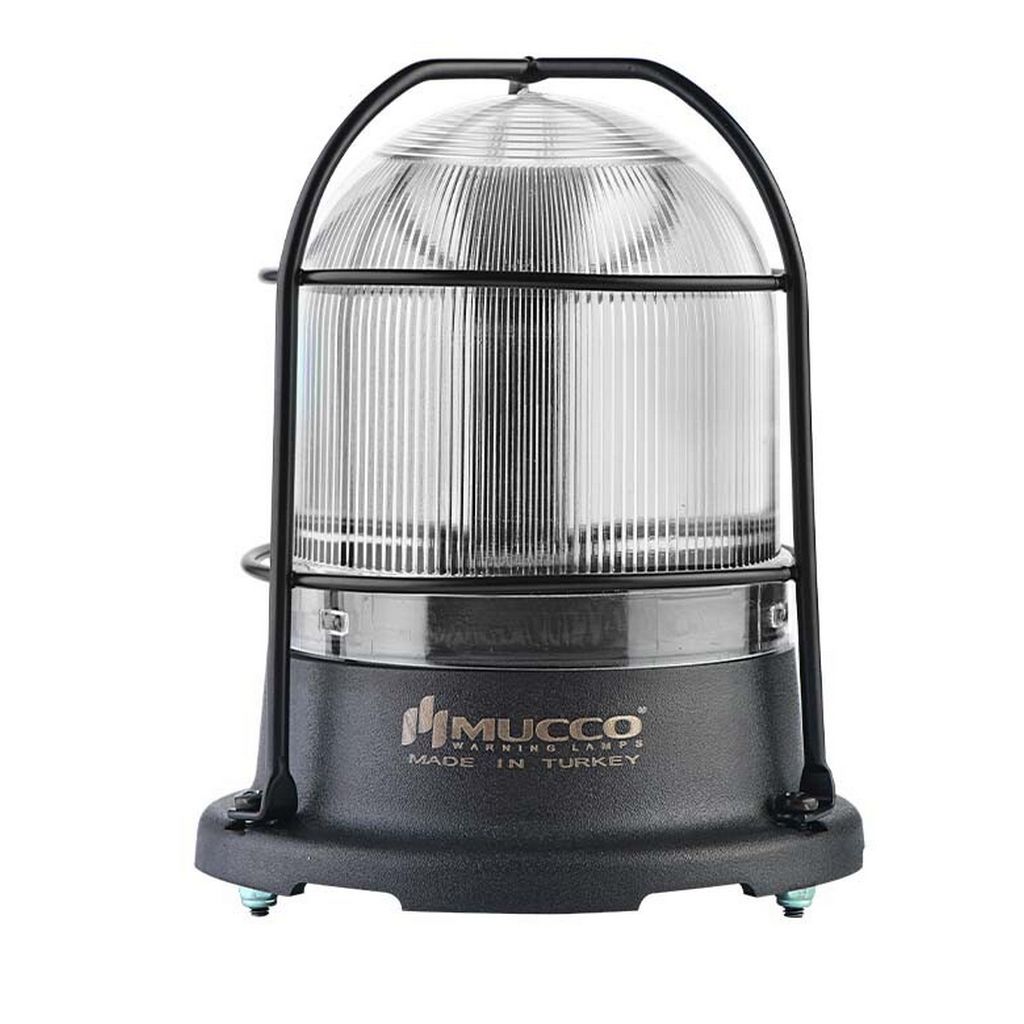

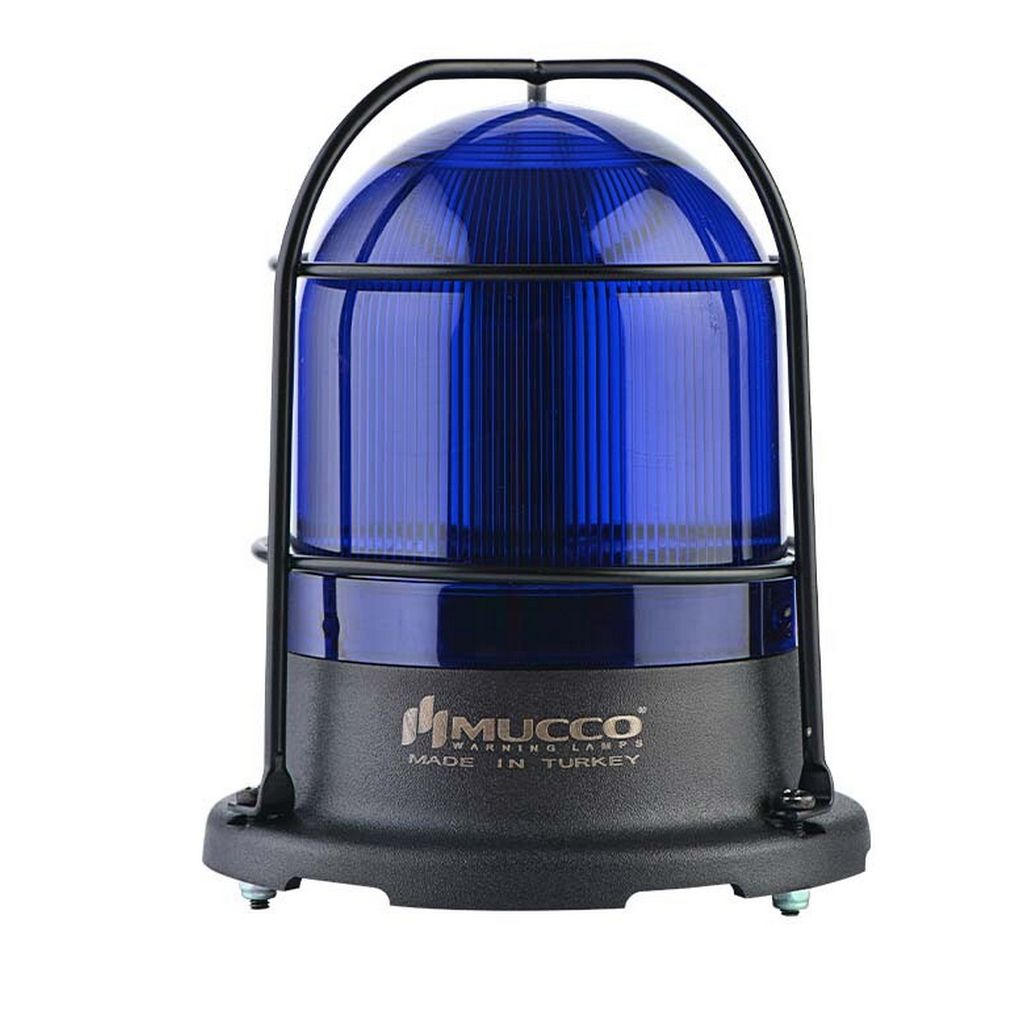

100 Series Signal Beacon With Protection Cage

Fiyat aralığı: $62,00 - $86,00

Stok kodu: SNT-115-KFS-1-SET
Request a quote
2 Year Warranty CE E37 EAC ISO-9001 RoSH2 IP65
Technical Data
Body Material ABS (Body), Polycarbonate (Lens)
Buzzer Options No, Yes
Certificates & Warranty 2 Year Warranty, CE, E37, EAC, ISO-9001, RoSH2
Connection Wire
Degree of Protection IP65
Expected Life Min. 50.000 hrs
Input Response Time on/off: 10ms max.
LED Options Power Led, SMD Led
Lens Color Options Red, Green, Yellow, Blue, White
Lens Diameter Ø100mm
Light Source SNT-115/125 series:POWER LED SNT-110/120 series:SMD LED
Melody 10 tone (button control)
Operation Conditions -20°C to +50°C (-4°F to +122°F)
Protection Dust, Heat, UV Ray Resistant, Water
Sound Intensity 88~112dB at 1m (3.3ft)
Voltage Options 12-24V AC/DC, 85-250V AC/DC
Current (max) SNT-115/125 series: | | 12-24V AC/DC | 447-531mA ±10% | 85-250V AC/DC | 41-58mA ±10% 50-60 Hz | SNT-110/120 series: | | 12-24V AC/DC | 140-144mA ±10% | 85-250V AC/DC | 320-240mA ±10% 50-60 Hz
PDF

Techn. datasheet (pdf)SNT-115-125 SERIES
PDF

Techn. datasheet (pdf)SNT-110-120 SERIES
STP
CAD Model STP (stp)
Please send an e-mail to [email protected] specifying the SKU code for the CAD Model of the product.

100-Series-Signal-Beacon-With-Protection-Cage-sound-1

100-Series-Signal-Beacon-With-Protection-Cage-sound-2

100-Series-Signal-Beacon-With-Protection-Cage-sound-3

100-Series-Signal-Beacon-With-Protection-Cage-sound-4

100-Series-Signal-Beacon-With-Protection-Cage-sound-5

100-Series-Signal-Beacon-With-Protection-Cage-sound-6

100-Series-Signal-Beacon-With-Protection-Cage-sound-7

100-Series-Signal-Beacon-With-Protection-Cage-sound-8

100-Series-Signal-Beacon-With-Protection-Cage-sound-9

100-Series-Signal-Beacon-With-Protection-Cage-sound-10

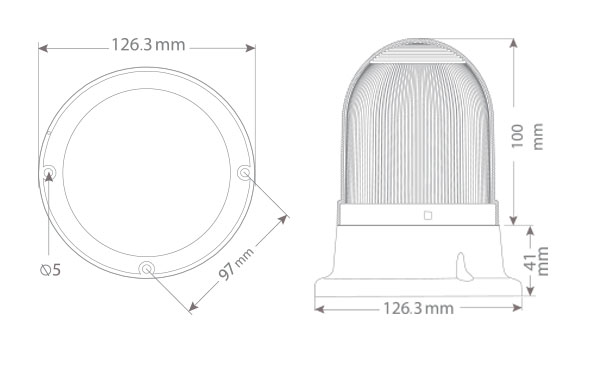

100-Series-Signal-Beacon-With-Protection-Cage-dim-1
