100 Series Multicolor RGB Warning Light

ESP Series RGB Heavy Duty Beacon Sirens

$250,00

Stok kodu: SNT-ESP24-RGB-SET
Request a quote
2 Year Warranty CE EAC ISO-9001 RoSH2 IP65
Technical Data
Body Material ABS (Body), Polycarbonate (Lens)
Certificates & Warranty 2 Year Warranty, CE, EAC, ISO-9001, RoSH2
Connection Wire
Degree of Protection IP65
Expected Life Min. 50.000 hrs
Input Response Time on/off: 10ms max.
Lens Color Options Red, Green, Yellow, Blue
Lens Diameter 145X136mm
Light Source RGB SMD LED
Melody 7 tone
Operation Conditions -20°C to +50°C (-4°F to +122°F)
Protection Dust, Heat, UV Ray Resistant, Water
Sound Intensity 130dB at 1m (3.3ft)
Voltage Options 12-30V AC/DC, 48V AC/DC, 85-250V AC/DC
Current (max) SNT-ESP13/ESP48/ESP22-RGB series: SNT-ESP13-RGB | 12-30V AC/DC | 625mA ±10% SNT-ESP48-RGB | 48V AC/DC | 475mA ±10% SNT-ESP22-RGB | 85-250V AC/DC | 400mA ±10%
PDF

Techn. datasheet (pdf)SNT-ESP-RGB SERIES
STP
CAD Model STP (stp)
Please send an e-mail to [email protected] specifying the SKU code for the CAD Model of the product.

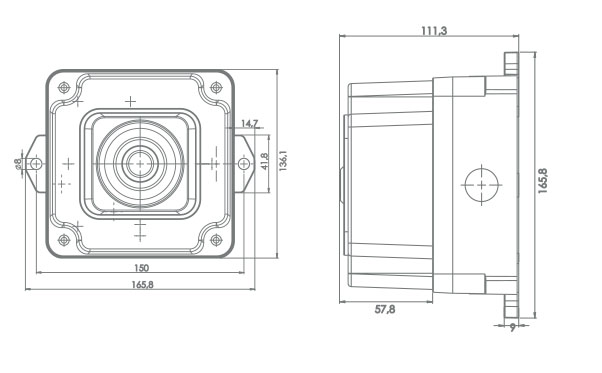

ESP-Series-Heavy-Duty-Warning-Light-dim-1
