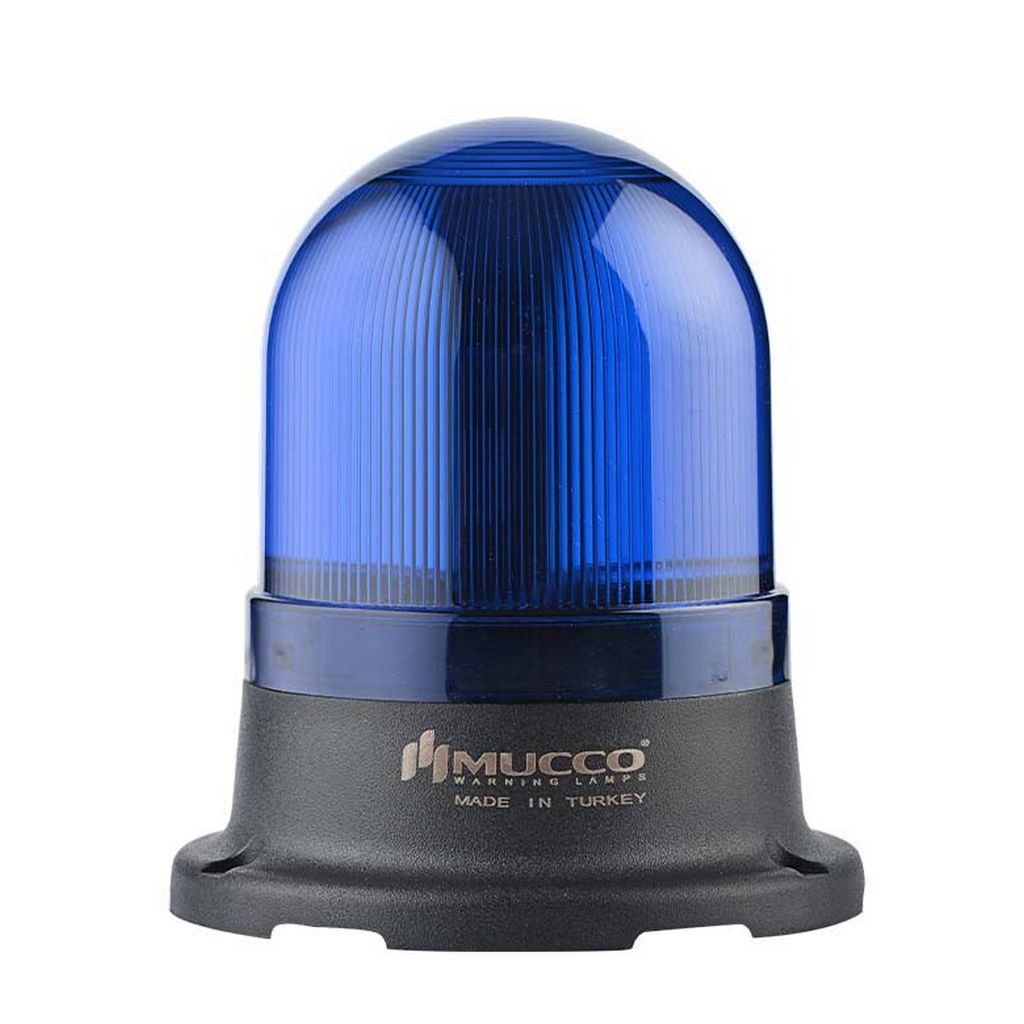

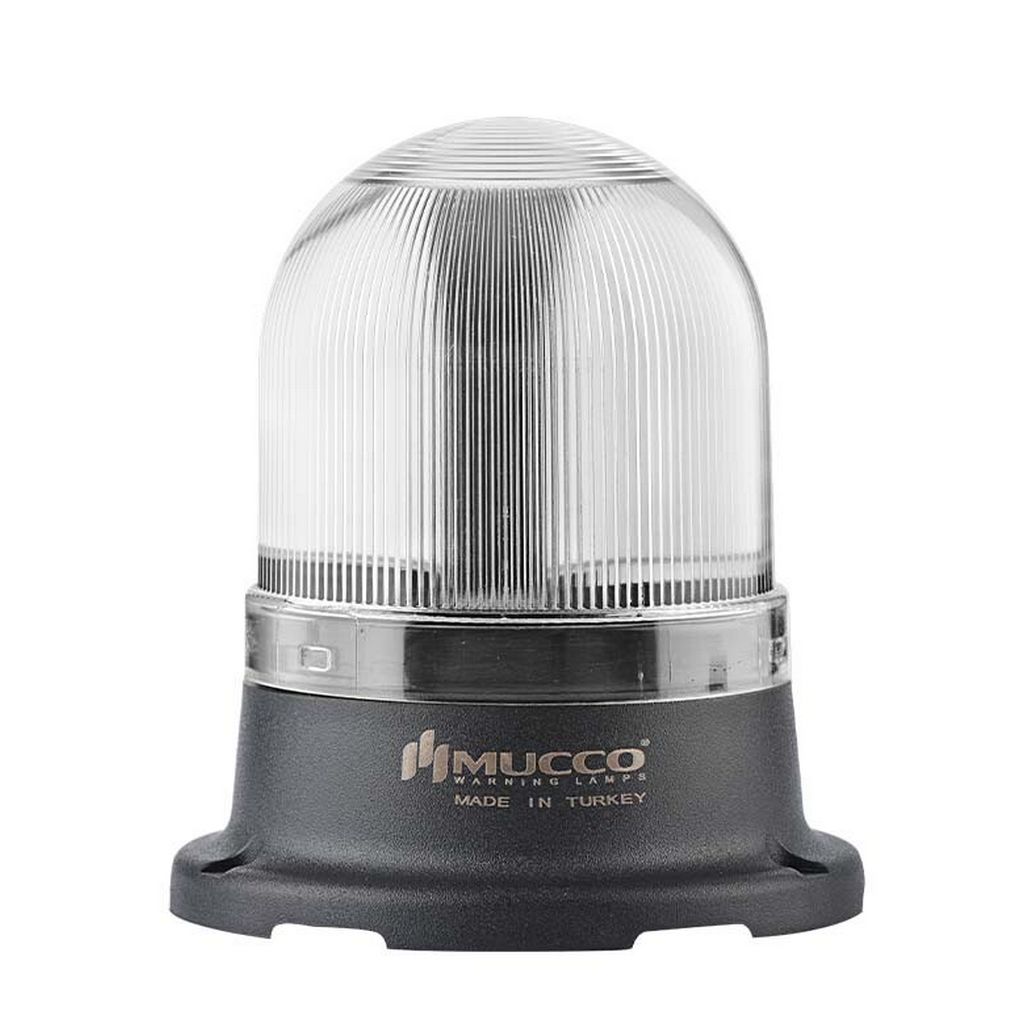

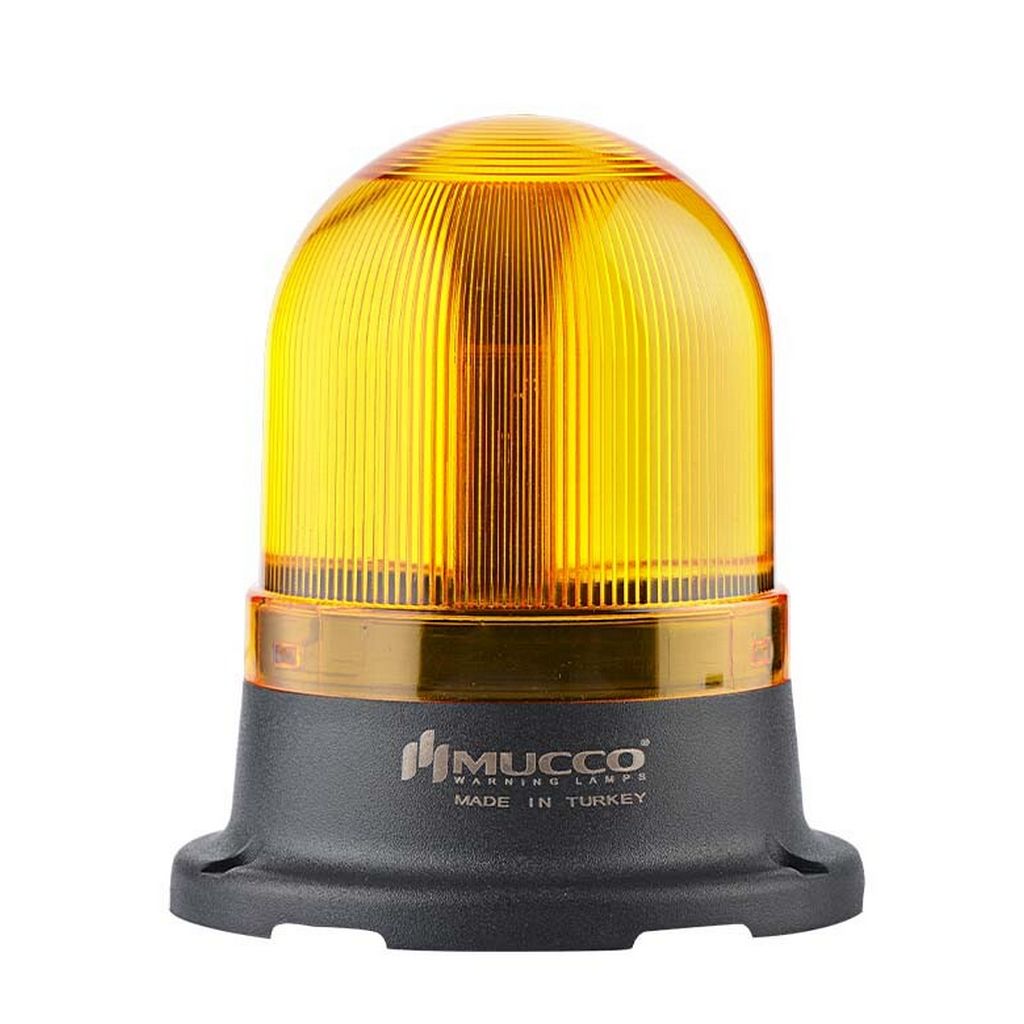

100 Series Signal Beacon
Price range: $47,00 through $71,00
| Technical Data | |
|---|---|
| Body Material | ABS (Body), Polycarbonate (Lens) |
| Buzzer Options | No, Yes |
| Certificates & Warranty | 2 Year Warranty, CE, E37, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Input Response Time | on/off: 10ms max. |
| LED Options | Power Led, SMD Led |
| Lens Color Options | Red, Green, Yellow, Blue, White |
| Lens Diameter | Ø100mm |
| Light Source | SNT-115/125 series:POWER LED SNT-110/120 series:SMD LED |
| Melody | 10 tone (button control) |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Sound Intensity | 88~112dB at 1m (3.3ft) |
| Voltage Options | 12-24V AC/DC, 85-250V AC/DC |
| Current (max) | SNT-115/125 series: 12-24V AC/DC | 447-531mA ±10% 85-250V AC/DC | 41-58mA ±10% 50-60 Hz SNT-110/120 series: 12-24V AC/DC | 140-144mA ±10% 85-260V AC/DC | 320-240mA ±10% 50-60 Hz |
|---|
-
Download -
Sounds -

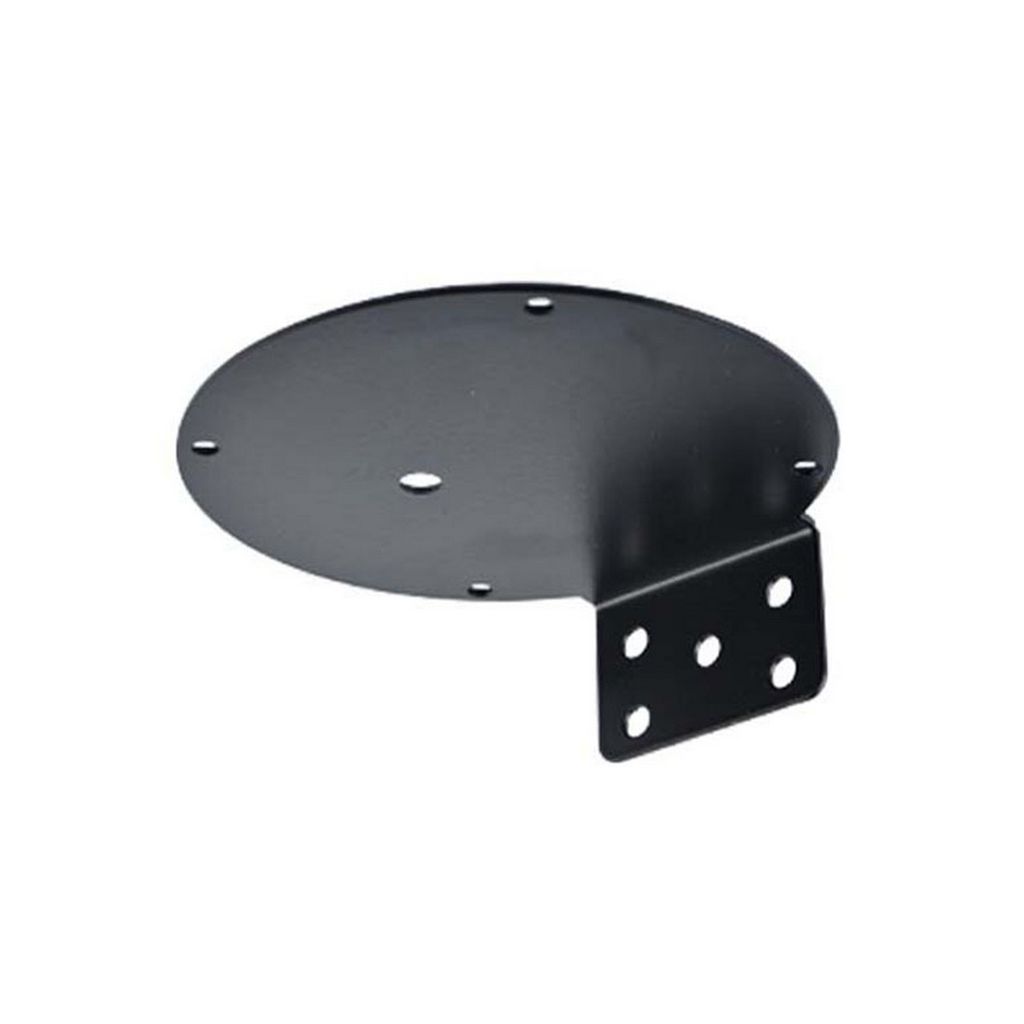

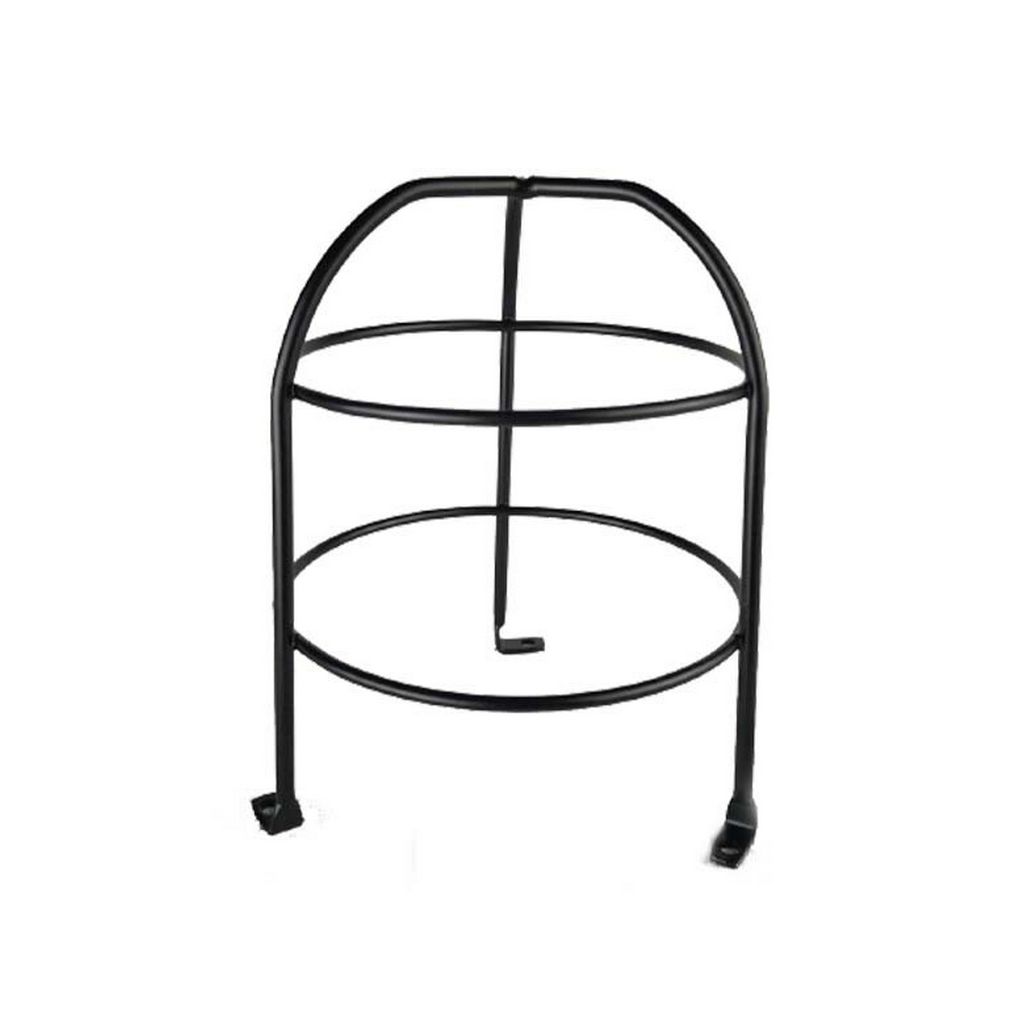

Accessories -

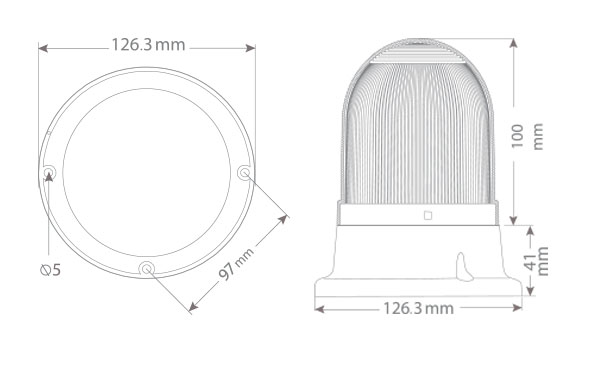

Dimensions
 |
CAD Model STP (stp)
Please send an e-mail to [email protected] specifying the SKU code for the CAD Model of the product.
|
100-Series-Signal-Beacon-sound-1
100-Series-Signal-Beacon-sound-2
100-Series-Signal-Beacon-sound-3
100-Series-Signal-Beacon-sound-4
100-Series-Signal-Beacon-sound-5
100-Series-Signal-Beacon-sound-6
100-Series-Signal-Beacon-sound-7
100-Series-Signal-Beacon-sound-8
100-Series-Signal-Beacon-sound-9
100-Series-Signal-Beacon-sound-10
-
-
-
Spare Parts

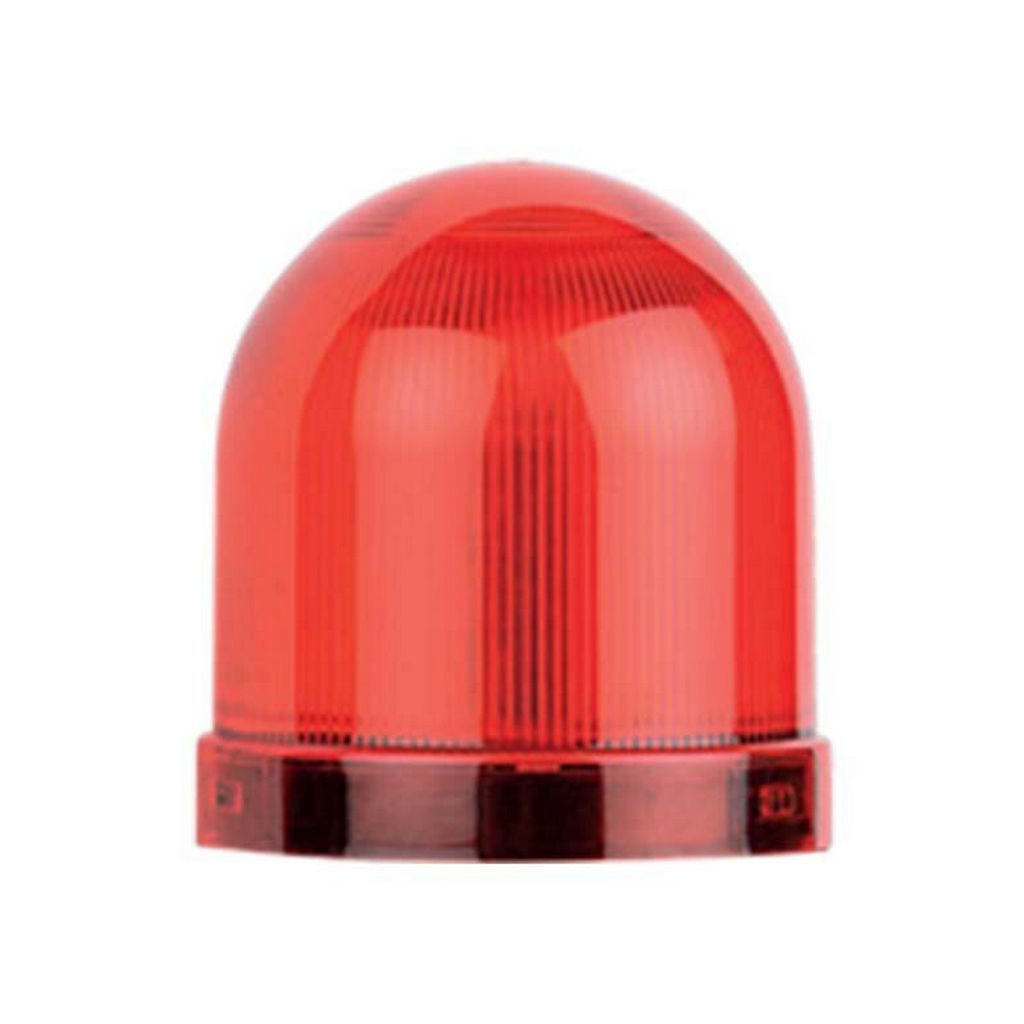

Ø100 Lens
$19,00
Select options
This product has multiple variants. The options may be chosen on the product pageQuick View
