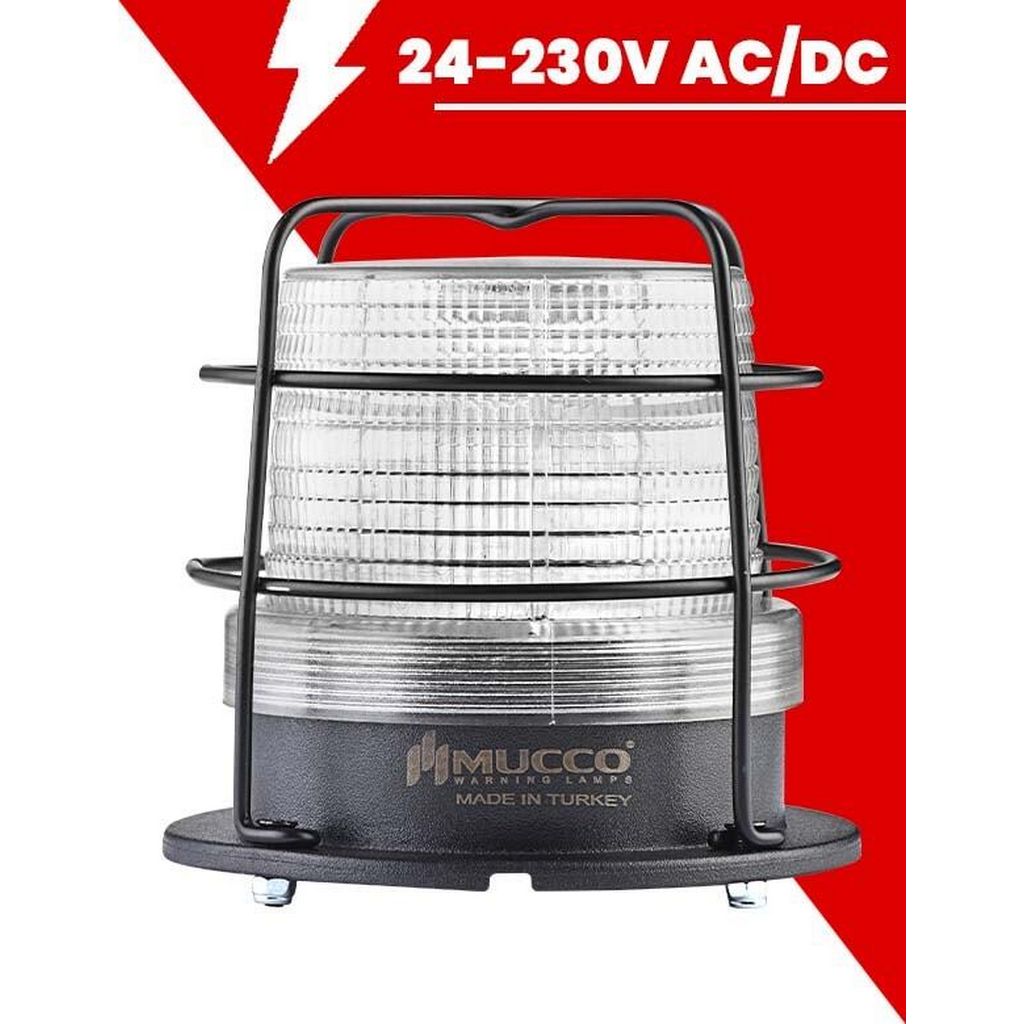

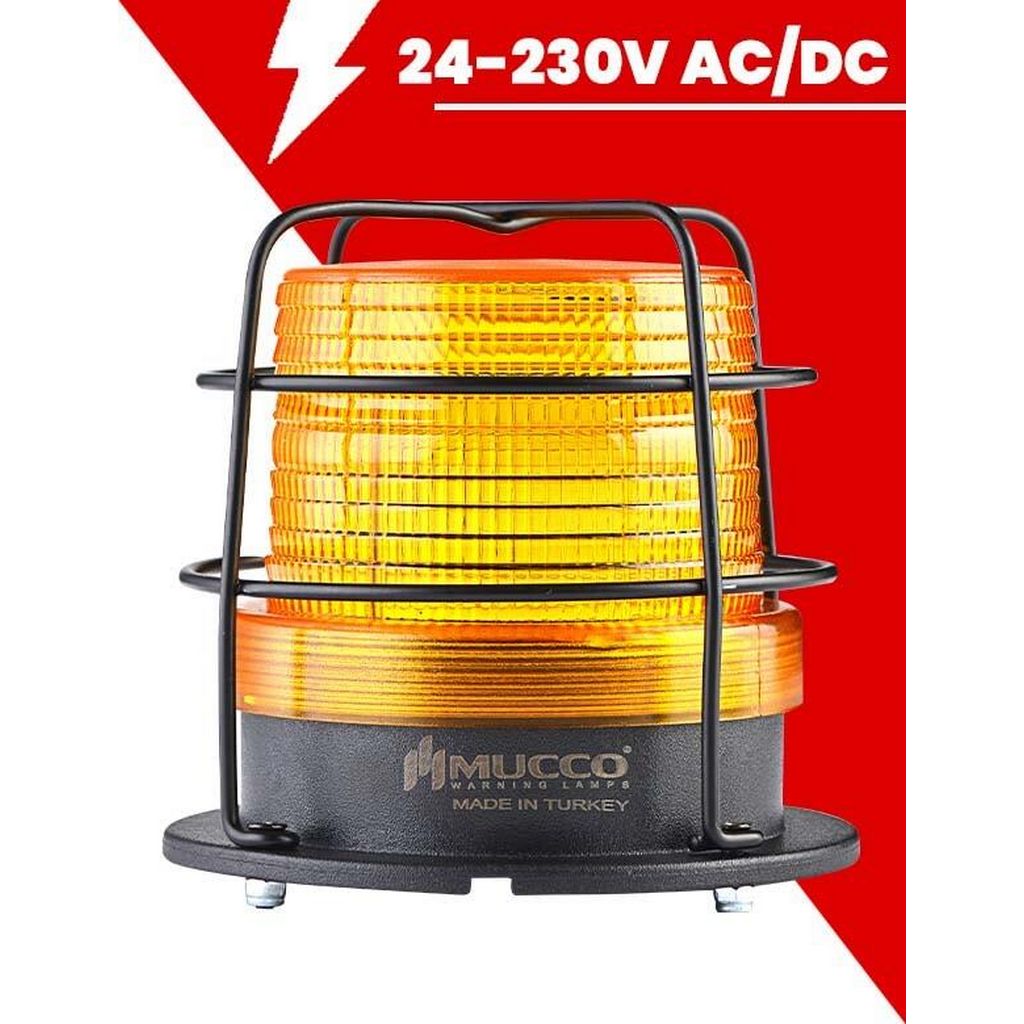

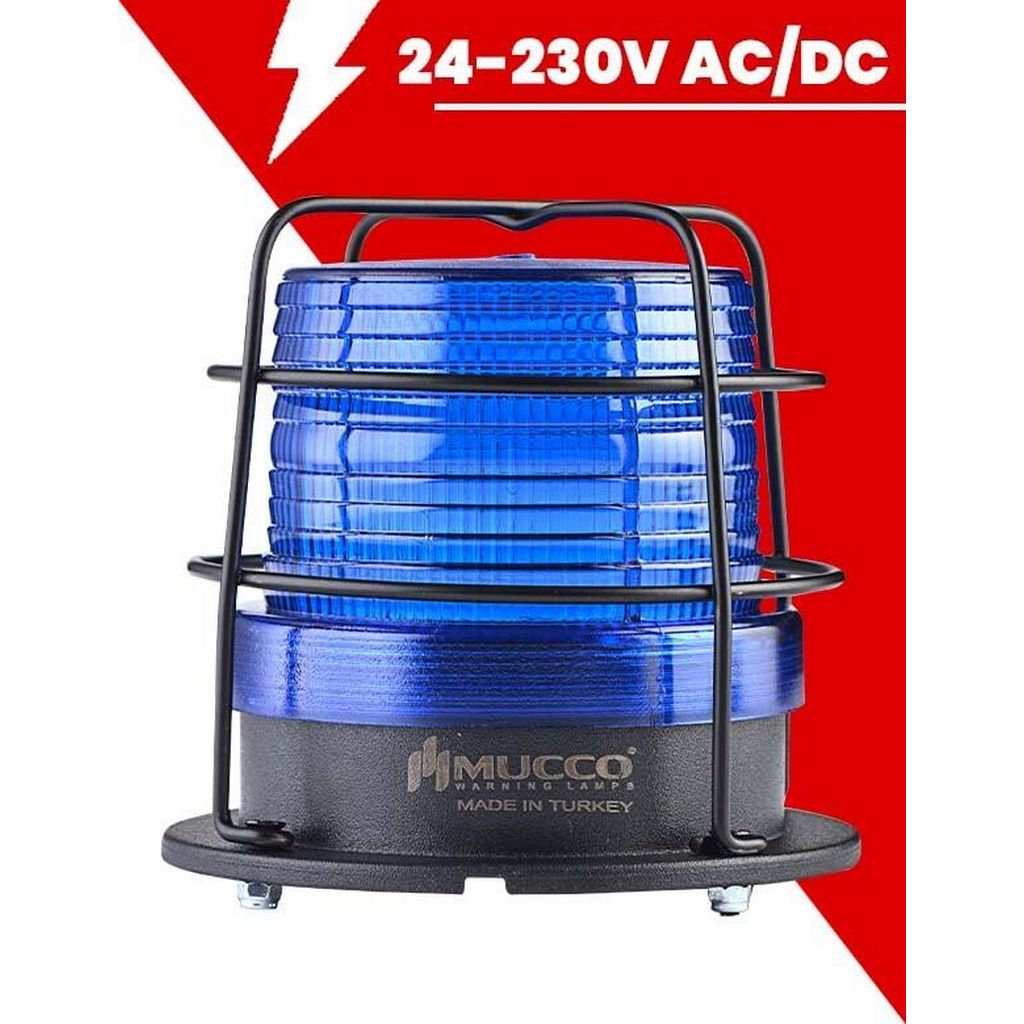

Maxi Volt Signal Beacon With Protection Cage
Price range: $90,00 through $98,00
| Technical Data | |
|---|---|
| Body Material | ABS (Body), Polycarbonate (Lens) |
| Buzzer Options | No, Yes |
| Certificates & Warranty | 2 Year Warranty, CE, E37, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Housing Options | 100 mm, 90 mm |
| Input Response Time | on/off: 10ms max. |
| Lens Color Options | Red, Green, Yellow, Blue, White |
| Lens Diameter | Ø100, Ø125mm, Ø90 |
| Light Source | POWER LED |
| Melody | 1 tone (button control) |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Sound Intensity | 117 dB at 1m (3.3ft) |
| Current (max) | Without Buzzer: | | 24-230V AC/DC | 463mA ±10% | - | - | With Buzzer: | | 24-90V/DC | 455mA ±10% | 24-60V/AC | 542mA ±10% 50-60 Hz |
|---|
-
Download -
Sounds -
Accessories -

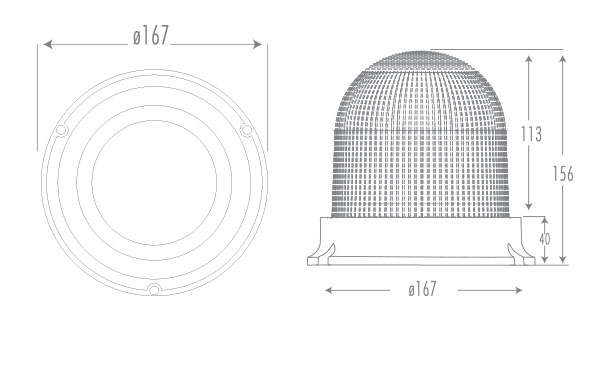

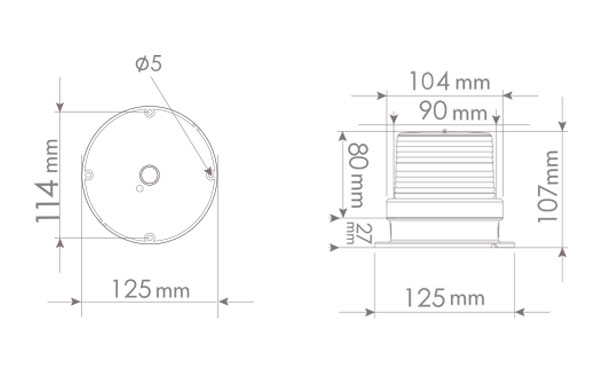

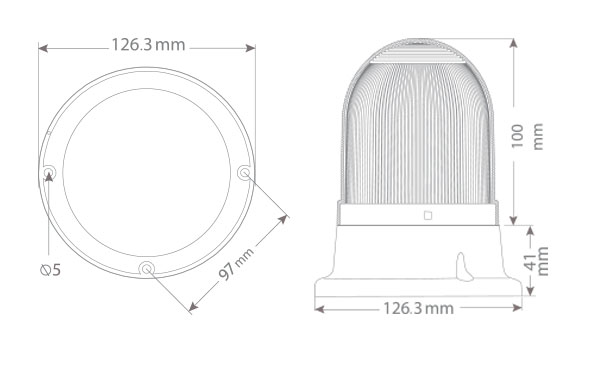

Dimensions
 |
CAD Model STP (stp)
Please send an e-mail to [email protected] specifying the SKU code for the CAD Model of the product.
|
Maxi-Volt-Signal-Beacon-With-Protection-Cage-sound-1
-
-
-
Spare Parts
Ø90 Lens
$19,00
Select options
This product has multiple variants. The options may be chosen on the product pageQuick View
