| Technical Data | |
|---|---|
| Body Material | ABS (Body), Polycarbonate (Lens) |
| Certificates & Warranty | 2 Year Warranty, CE, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Input Response Time | on/off: 10ms max. |
| Lens Diameter | Ø30mm |
| Light Source | - |
| Melody | 1 tone |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Sound Intensity | 105-110 dB at 1m (3.3ft) |
| Voltage Options | 220V/AC, 24V/DC |
| Current (max) | SNT-35L series: SNT-35L22 | 220 V/AC | 12mA ±10% 50-60 Hz SNT-35L24 | 24 V/DC | 17mA ±10% - | - - | - |
|---|
-
Download -
Sounds -
Accessories -

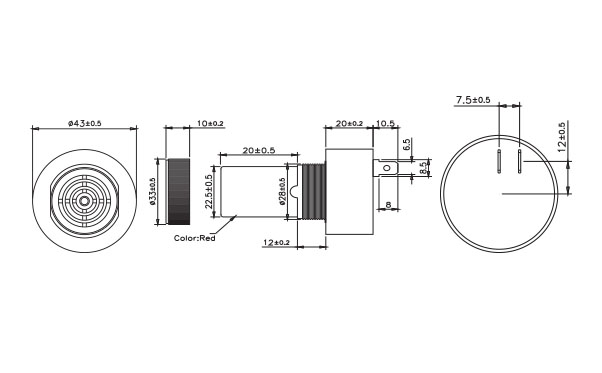

Dimensions
 |
CAD Model STP (stp)
Please send an e-mail to [email protected] specifying the SKU code for the CAD Model of the product.
|
