Multicolor RGB Stack Light
Price range: $50,00 through $79,00
| Technical Data | |
|---|---|
| Body Material | ABS (Body), Polycarbonate (Lens) |
| Buzzer Options | No, Yes |
| Certificates & Warranty | 2 Year Warranty, CE, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Input Response Time | on/off: 10ms max. |
| Lens Color Options | Red, Green, Yellow, Blue |
| Lens Diameter | Ø70mm |
| Light Source | RGB SMD LED |
| Melody | 16 tone Internal button change |
| Mounting Type | Foldable Base, Surface, Wall |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Voltage Options | 12V-24V DC, 40-250V AC/DC |
| Current (max) | SNT-T74-RGB 12-24 V/DC 110mA ±10% SNT-T72-RGB 40-250 AC/DC 28mA ±10% SNT-T74/T72-B-RGB series: SNT-T74-B-RGB 12-24 V/DC 230mA ±10% SNT-T72-B-RGB 40-250 AC/DC 47mA ±10% |
|---|
-
Download -
Sounds -
Accessories -

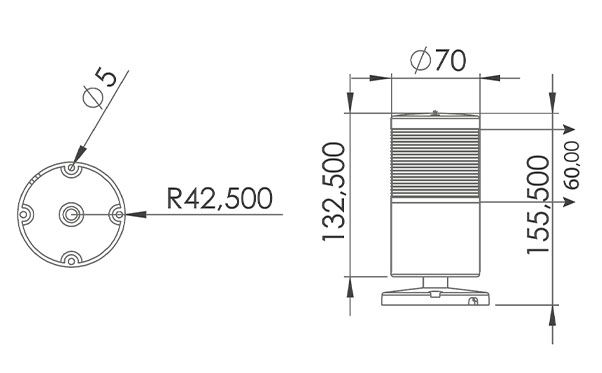

Dimensions
 |
CAD Model STP (stp)
Please send an e-mail to [email protected] specifying the SKU code for the CAD Model of the product.
|
Multicolor-RGB-Stack-Light-sound-1
Multicolor-RGB-Stack-Light-sound-2
Multicolor-RGB-Stack-Light-sound-3
Multicolor-RGB-Stack-Light-sound-4
Multicolor-RGB-Stack-Light-sound-5
Multicolor-RGB-Stack-Light-sound-6
Multicolor-RGB-Stack-Light-sound-7
Multicolor-RGB-Stack-Light-sound-8
