Universal LED Warning Horns with 16Tons

$65,00

SKU: SNT-K712-1-SET

Lens Color Options

Voltage Options

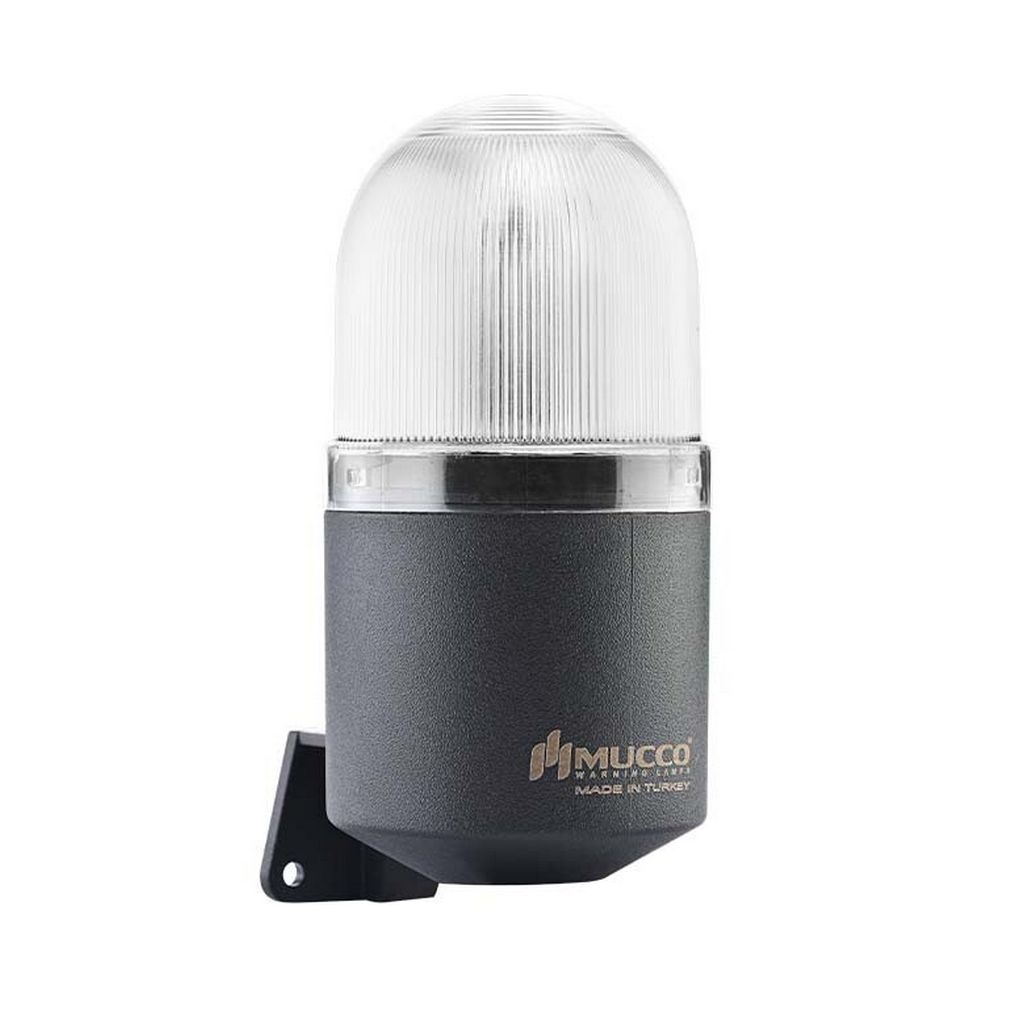

Clear

Technical Data
Body Material	ABS (Body), Polycarbonate (Lens)
Certificates & Warranty	2 Year Warranty, CE, EAC, ISO-9001, RoSH2
Connection	Wire
Degree of Protection	IP65
Expected Life	Min. 50.000 hrs
Input Response Time	on/off: 10ms max.
Lens Color Options	Red, Green, Yellow, Blue, White

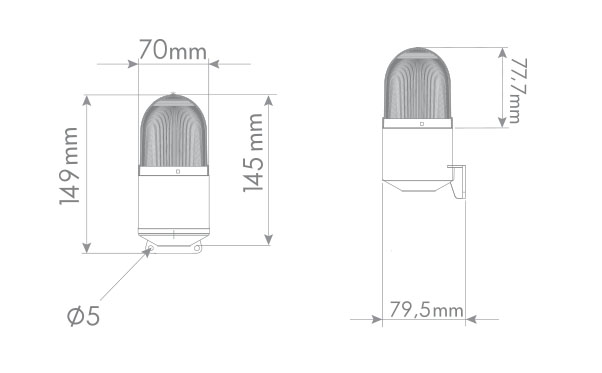

Lens Diameter	Ø70mm
Light Source	SMD LED
Melody	16 tone Internal button change
Operation Conditions	-20°C to +50°C (-4°F to +122°F)
Protection	Dust, Heat, UV Ray Resistant, Water
Sound Intensity	95-127 dB at 1m (3.3ft) Can be adjusted with potentiometer
Voltage Options	12-24V AC/DC, 40-250V AC/DC

Current (max)	SNT-K711 series: \| \| 12-24V AC/DC \| 250mA ±10% \| - \| - \| SNT-K712 series: \| \| 40-250V AC/DC \| 50mA ±10% 50-60 Hz \| - \| -

CAD Model STP (stp)

Please send an e-mail to [email protected] specifying the SKU code for the CAD Model of the product.
