100 Series Telephone Ring Signal Beacon
For bulk, quantity and project-based orders, please use
Request a Quote
to receive your special discounted pricing.
| Technical Data | |
|---|---|
| Body Material | ABS (Body), Polycarbonate (Lens) |
| Buzzer Options | Yes |
| Certificates & Warranty | 2 Year Warranty, CE, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Housing Options | 100 mm |
| Input Response Time | on/off: 10ms max. |
| LED Options | Power Led |
| Lens Color Options | Red, Green, Yellow, Blue, White |
| Lens Diameter | Ø100mm |
| Light Mode | Flashing, Right-Left Strobe, Rotary, Slow Flashing, Slow Rotary, Steady, Strobe |
| Light Source | POWER LED |
| Melody | 10 tone (button control) |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Sound Intensity | 85~110dB at 1m (3.3ft) |
| Current (max) | 12-24V AC/DC | 447-531mA ±10% | 85-250V AC/DC | 121mA ±10% 50-60 Hz |
|---|
Download
Sounds
Accessories

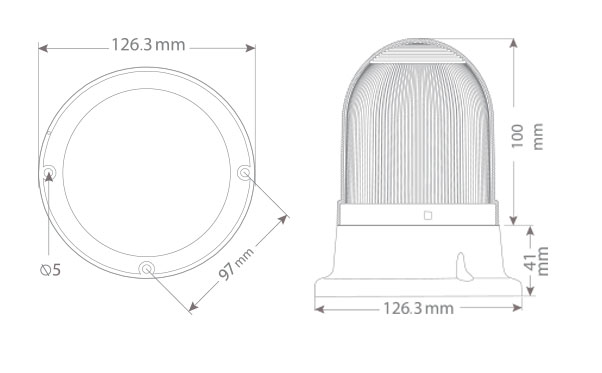

Dimensions
 | CAD Model STP (stp) Please send an e-mail to sales@muccosignal.com specifying the SKU code for the CAD Model of the product. |
100-Series-Telephone-Ring-Signal-Beacon-sound-1
100-Series-Telephone-Ring-Signal-Beacon-sound-2
100-Series-Telephone-Ring-Signal-Beacon-sound-3
100-Series-Telephone-Ring-Signal-Beacon-sound-4
100-Series-Telephone-Ring-Signal-Beacon-sound-5
100-Series-Telephone-Ring-Signal-Beacon-sound-6
100-Series-Telephone-Ring-Signal-Beacon-sound-7
100-Series-Telephone-Ring-Signal-Beacon-sound-8
100-Series-Telephone-Ring-Signal-Beacon-sound-9
100-Series-Telephone-Ring-Signal-Beacon-sound-10
