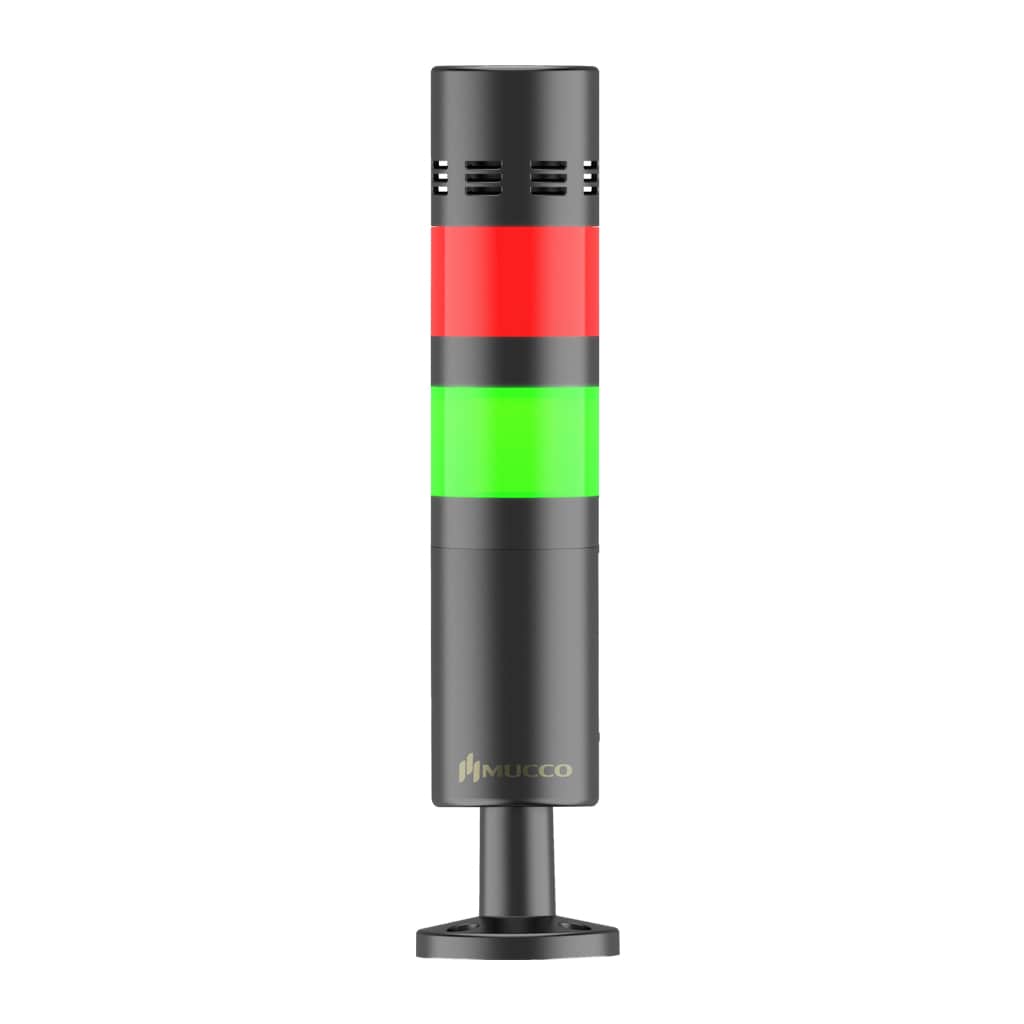

50 Series Modular Stack Light With Two Layer
For bulk, quantity and project-based orders, please use
Request a Quote
to receive your special discounted pricing.
| Technical Data | |
|---|---|
| Body Material | ABS (Body), Polycarbonate (Lens) |
| Buzzer Options | No, Yes |
| Certificates & Warranty | 2 Year Warranty, CE, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Input Response Time | on/off: 10ms max. |
| Lens Diameter | Ø50mm |
| Light Mode | Fast Flashing, Flashing, Steady, Strobe |
| Light Source | SMD LED |
| Melody | 7 tone |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Sound Intensity | 107-122dB at 1m (3.3ft) |
| Voltage Options | 24V AC/DC, 85-250V AC/DC |
| Current (max) | -mA @85-250V AC/DC, 65mA @24V AC/DC |
|---|
Download
Sounds
Accessories
Dimensions
 | CAD Model STP (stp) Please send an e-mail to sales@muccosignal.com specifying the SKU code for the CAD Model of the product. |
Modular Stack Light 1
Modular Stack Light 2
Modular Stack Light 3
Modular Stack Light 4
Modular Stack Light 5
Modular Stack Light 6
Modular Stack Light 7
