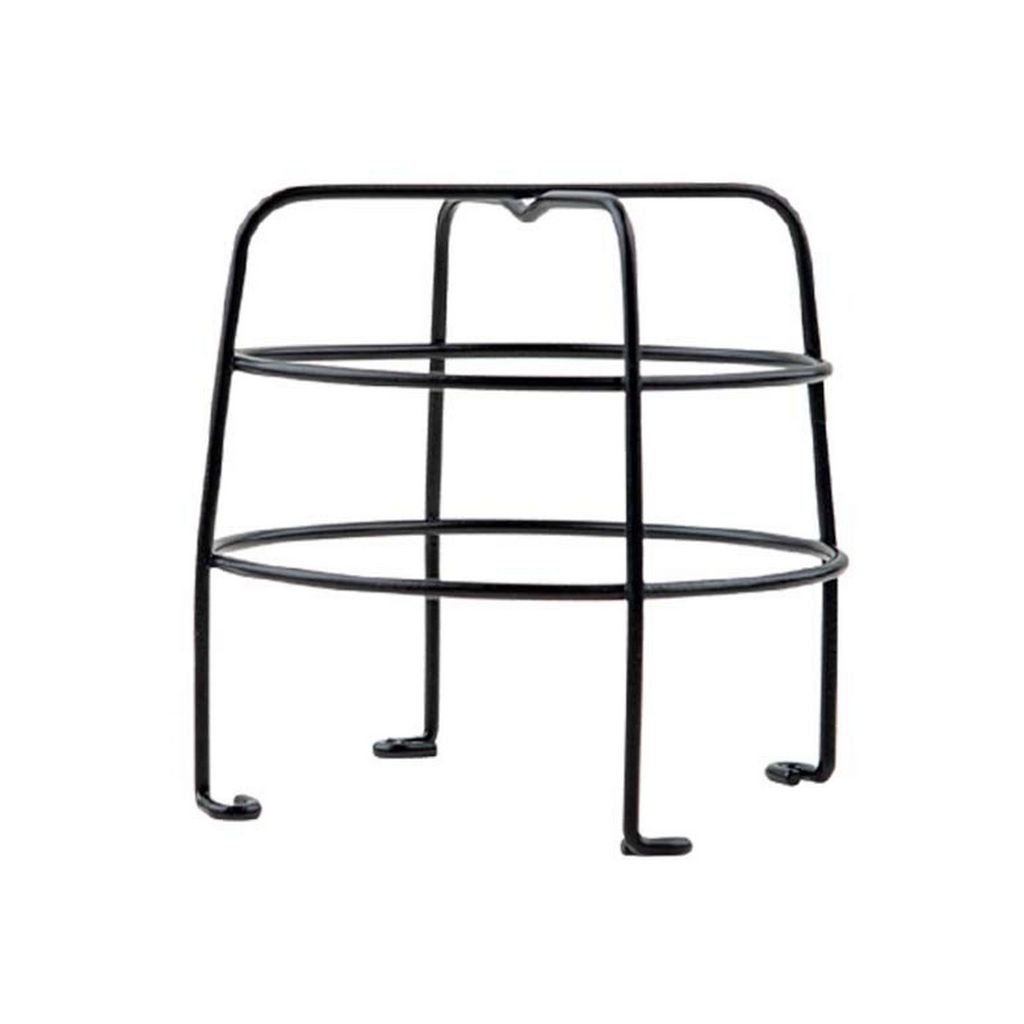

90 Series Signal Beacon With Protection Cage

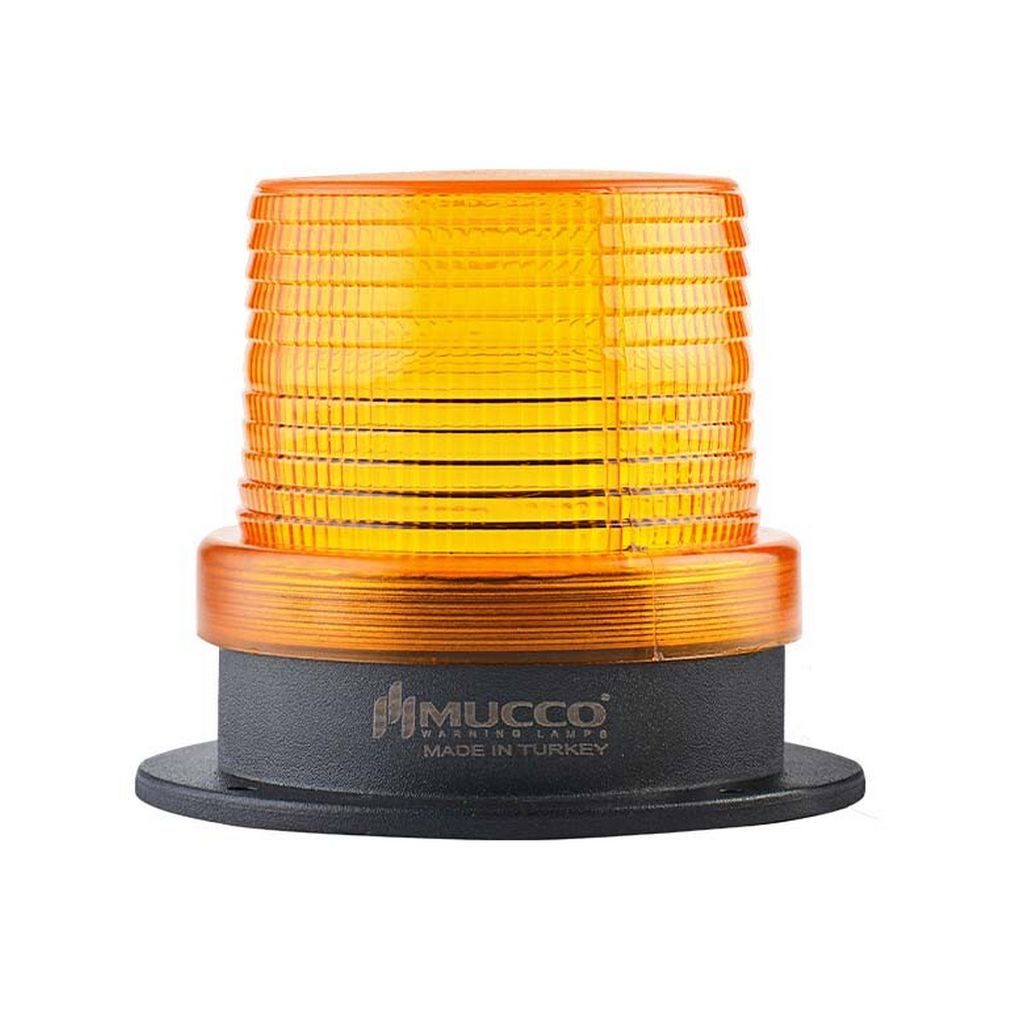

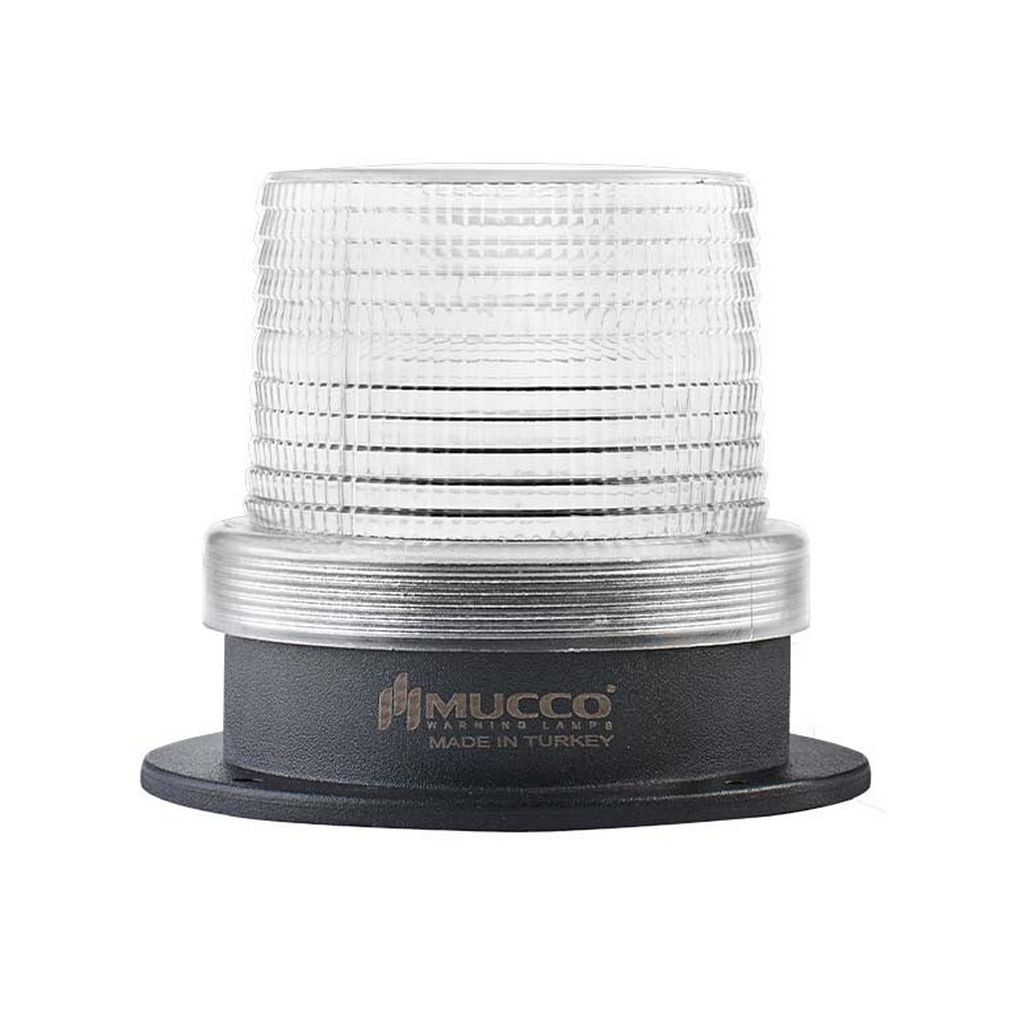

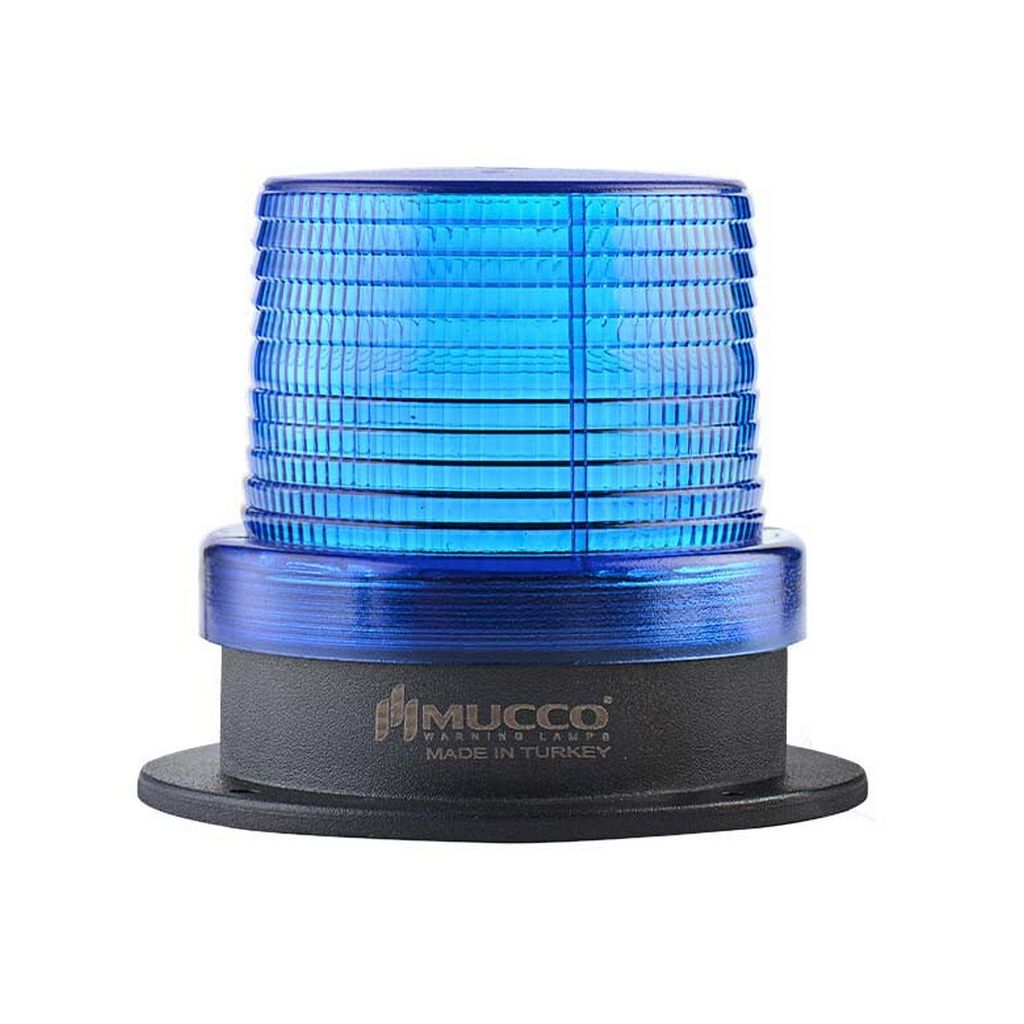

90 Series Signal Beacon

Price range: $47,00 through $71,00

SKU: SNT-915-1-SET
Request a quote
2 Year Warranty CE E37 EAC ISO-9001 RoSH2 IP65
Technical Data
Body Material ABS (Body), Polycarbonate (Lens)
Buzzer Options No, Yes
Certificates & Warranty 2 Year Warranty, CE, E37, EAC, ISO-9001, RoSH2
Connection Wire
Degree of Protection IP65
Expected Life Min. 50.000 hrs
Input Response Time on/off: 10ms max.
LED Options Power Led, SMD Led
Lens Color Options Red, Green, Yellow, Blue, White
Lens Diameter Ø90mm
Light Source SNT-915/925 series: POWER LED SNT-910/920 series: SMD LED
Melody 10 tone (button control)
Operation Conditions -20°C to +50°C (-4°F to +122°F)
Protection Dust, Heat, UV Ray Resistant, Water
Sound Intensity 85~110dB at 1m (3.3ft)
Voltage Options 12-24V AC/DC, 85-250V AC/DC
Current (max) SNT-915/925 series: | | 12-24V AC/DC | 447-531mA ±10% | 85-250V AC/DC | 41-58mA ±10% 50-60 Hz | SNT-910/920 series: | | 12-24V AC/DC | 140-144mA ±10% | 85-250V AC/DC | 320-240mA ±10% 50-60 Hz
PDF

Techn. datasheet (pdf)SNT-910-920 SERIES
PDF

Techn. datasheet (pdf)SNT-915-925 SERIES
STP
CAD Model STP (stp)
Please send an e-mail to [email protected] specifying the SKU code for the CAD Model of the product.

90-Series-Signal-Beacon-sound-1

90-Series-Signal-Beacon-sound-2

90-Series-Signal-Beacon-sound-3

90-Series-Signal-Beacon-sound-4

90-Series-Signal-Beacon-sound-5

90-Series-Signal-Beacon-sound-6

90-Series-Signal-Beacon-sound-7

90-Series-Signal-Beacon-sound-8

90-Series-Signal-Beacon-sound-9

90-Series-Signal-Beacon-sound-10

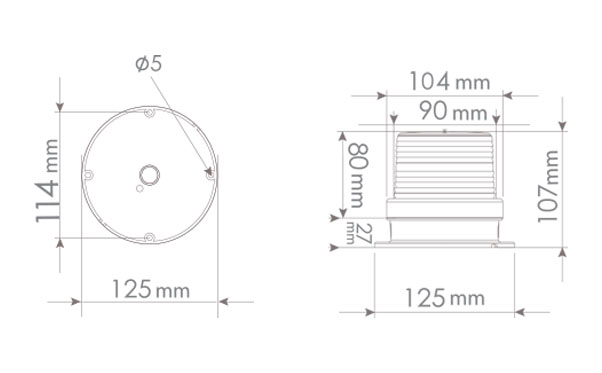

90-Series-Signal-Beacon-dim-1
