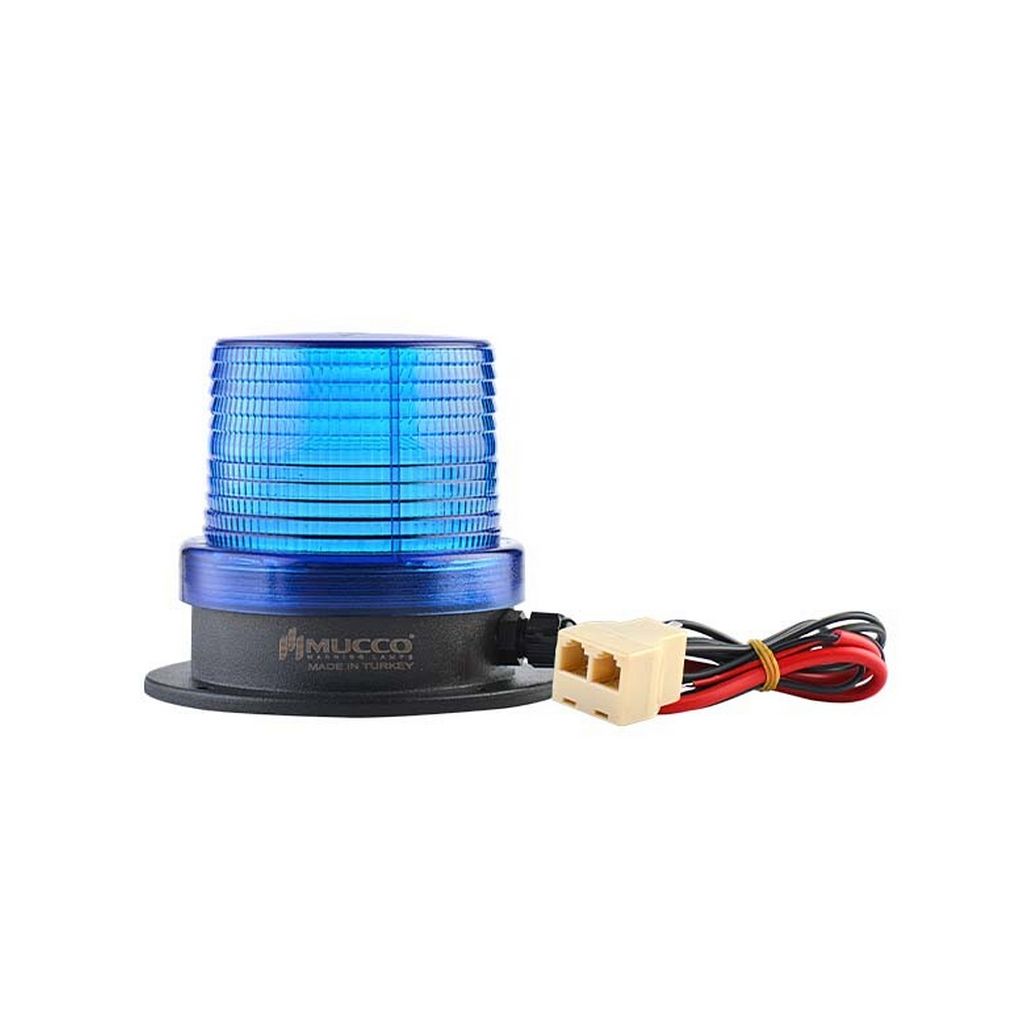

90 Series Telephone Ring Signal Beacon - Image 1

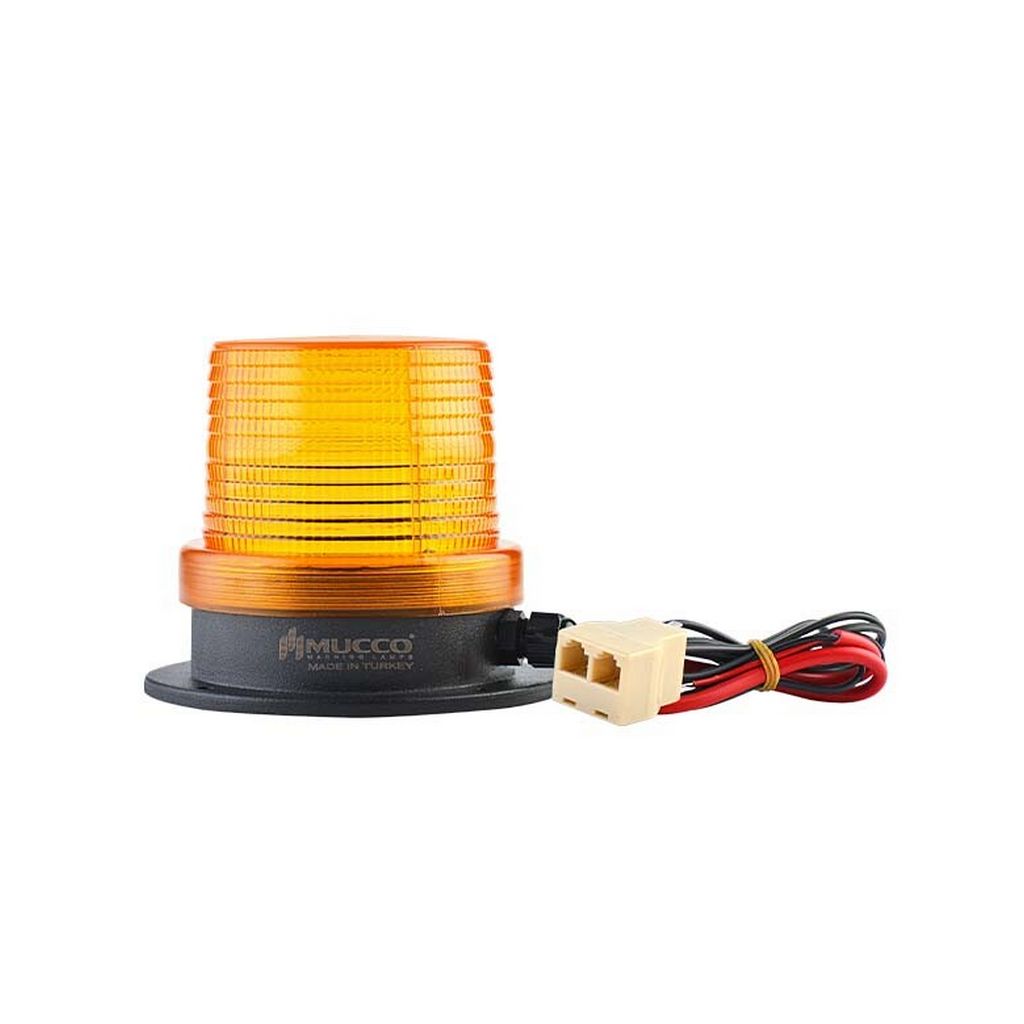

90 Series Telephone Ring Signal Beacon - Image 2
90 Series Telephone Ring Signal Beacon - Image 3

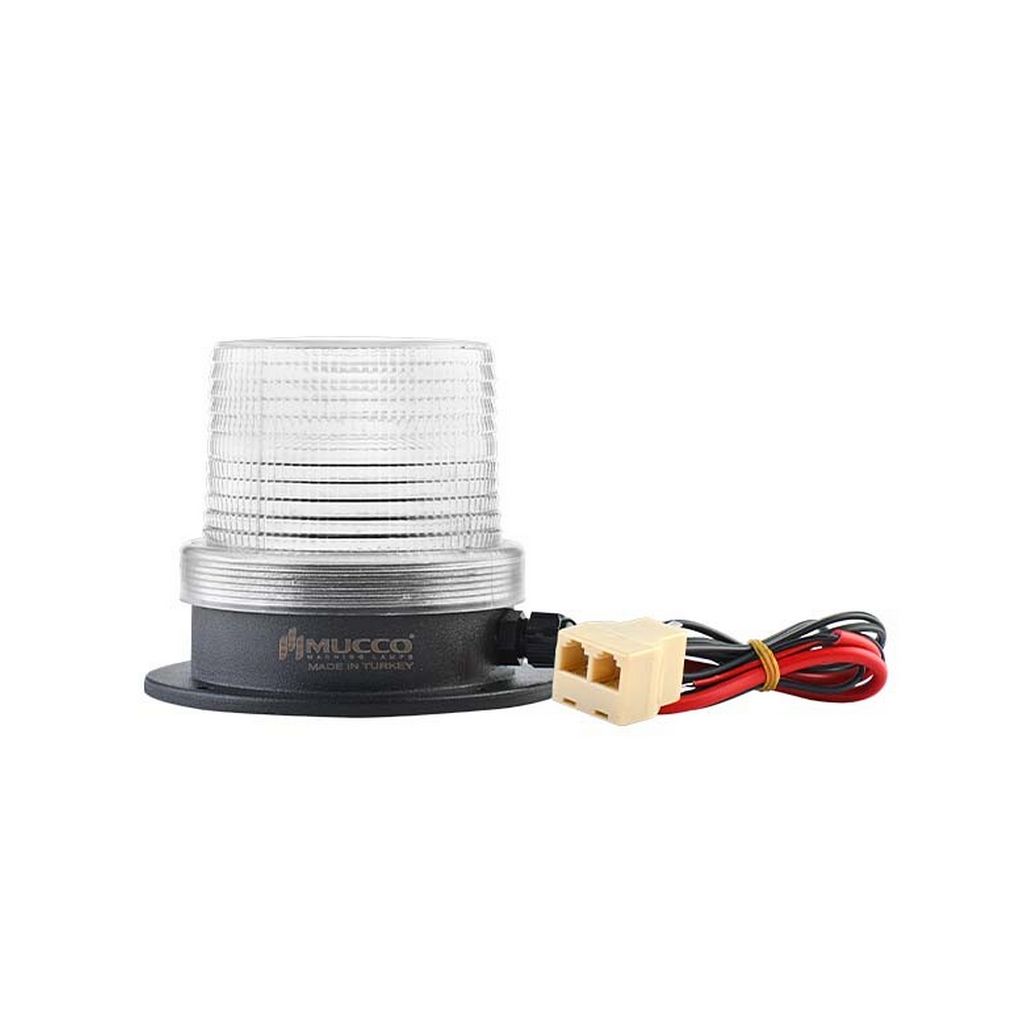

90 Series Telephone Ring Signal Beacon - Image 4
90 Series Telephone Ring Signal Beacon - Image 5
100 Series Telephone Ring Signal Beacon
70 Series Signal Beacon

90 Series Telephone Ring Signal Beacon

Price range: $75,00 through $98,00

SKU: SNT-915-PH-KFS-1-SET
Request a quote
2 Year Warranty CE EAC ISO-9001 RoSH2 IP65
Technical Data
Body Material ABS (Body), Polycarbonate (Lens)
Buzzer Options Yes
Certificates & Warranty 2 Year Warranty, CE, EAC, ISO-9001, RoSH2
Connection Wire
Degree of Protection IP65
Expected Life Min. 50.000 hrs
Housing Options 90 mm
Input Response Time on/off: 10ms max.
LED Options Power Led
Lens Color Options Red, Green, Yellow, Blue, White
Lens Diameter Ø90mm
Light Source POWER LED
Melody 10 tone (button control)
Operation Conditions -20°C to +50°C (-4°F to +122°F)
Protection Dust, Heat, UV Ray Resistant, Water
Sound Intensity 85~110dB at 1m (3.3ft)
Current (max) 12-24V AC/DC | 447-531mA ±10% | 85-250V AC/DC | 121mA ±10% 50-60 Hz
PDF

Techn. datasheet (pdf)SNT-915-PH-925-PH SERIES
STP
CAD Model STP (stp)
Please send an e-mail to [email protected] specifying the SKU code for the CAD Model of the product.

90-Series-Telephone-Ring-Signal-Beacon-sound-1

90-Series-Telephone-Ring-Signal-Beacon-sound-2

90-Series-Telephone-Ring-Signal-Beacon-sound-3

90-Series-Telephone-Ring-Signal-Beacon-sound-4

90-Series-Telephone-Ring-Signal-Beacon-sound-5

90-Series-Telephone-Ring-Signal-Beacon-sound-6

90-Series-Telephone-Ring-Signal-Beacon-sound-7

90-Series-Telephone-Ring-Signal-Beacon-sound-8

90-Series-Telephone-Ring-Signal-Beacon-sound-9

90-Series-Telephone-Ring-Signal-Beacon-sound-10

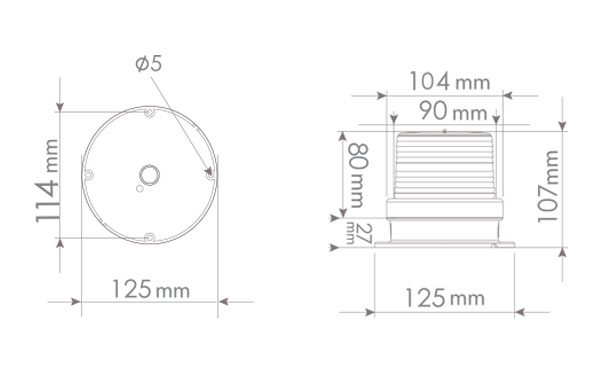

90-Series-Telephone-Ring-Signal-Beacon-dim-1
