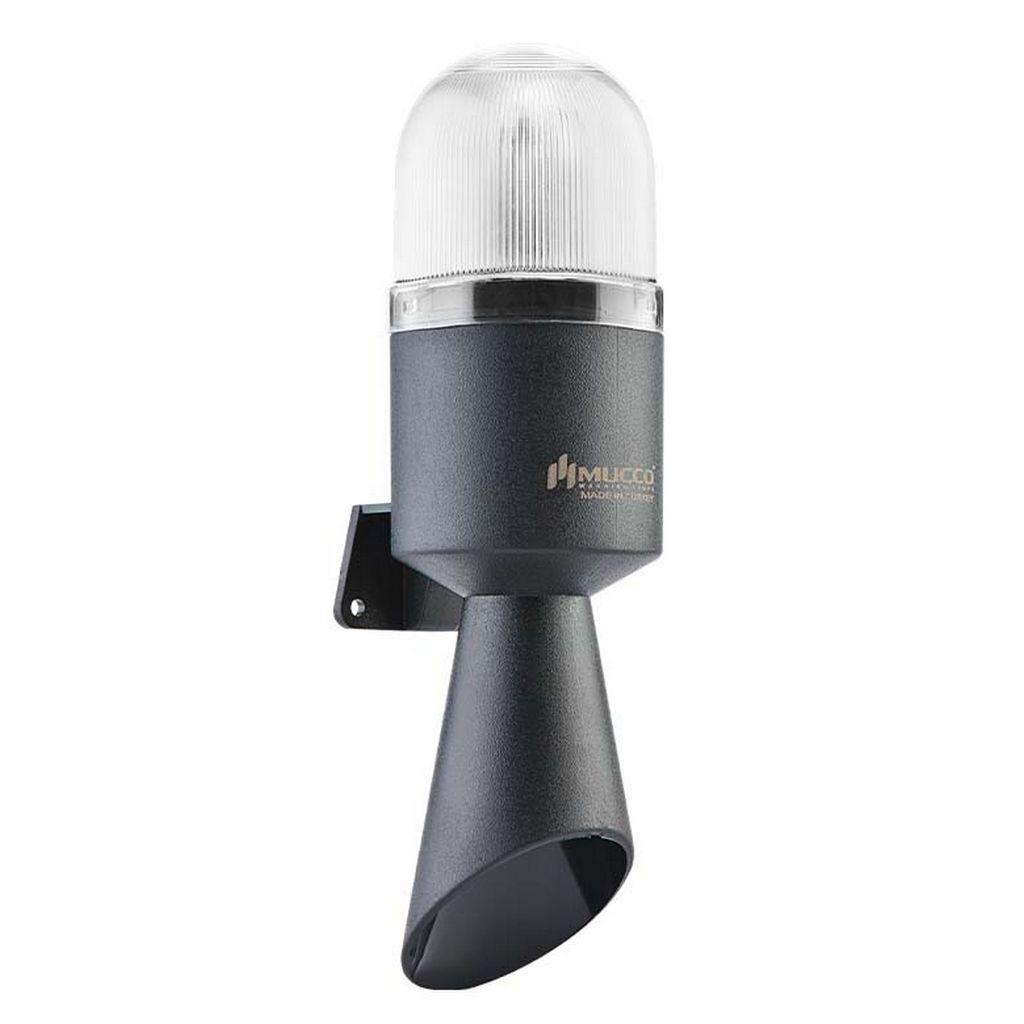

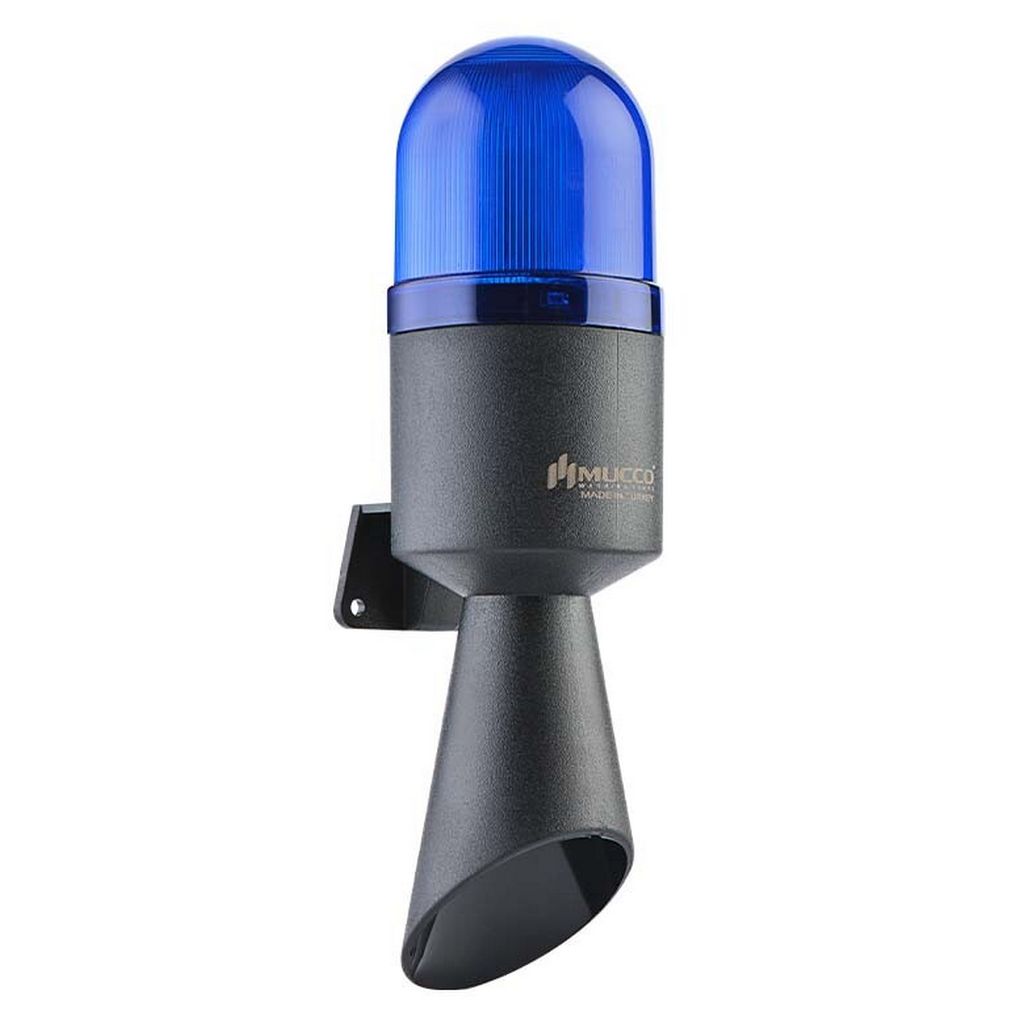

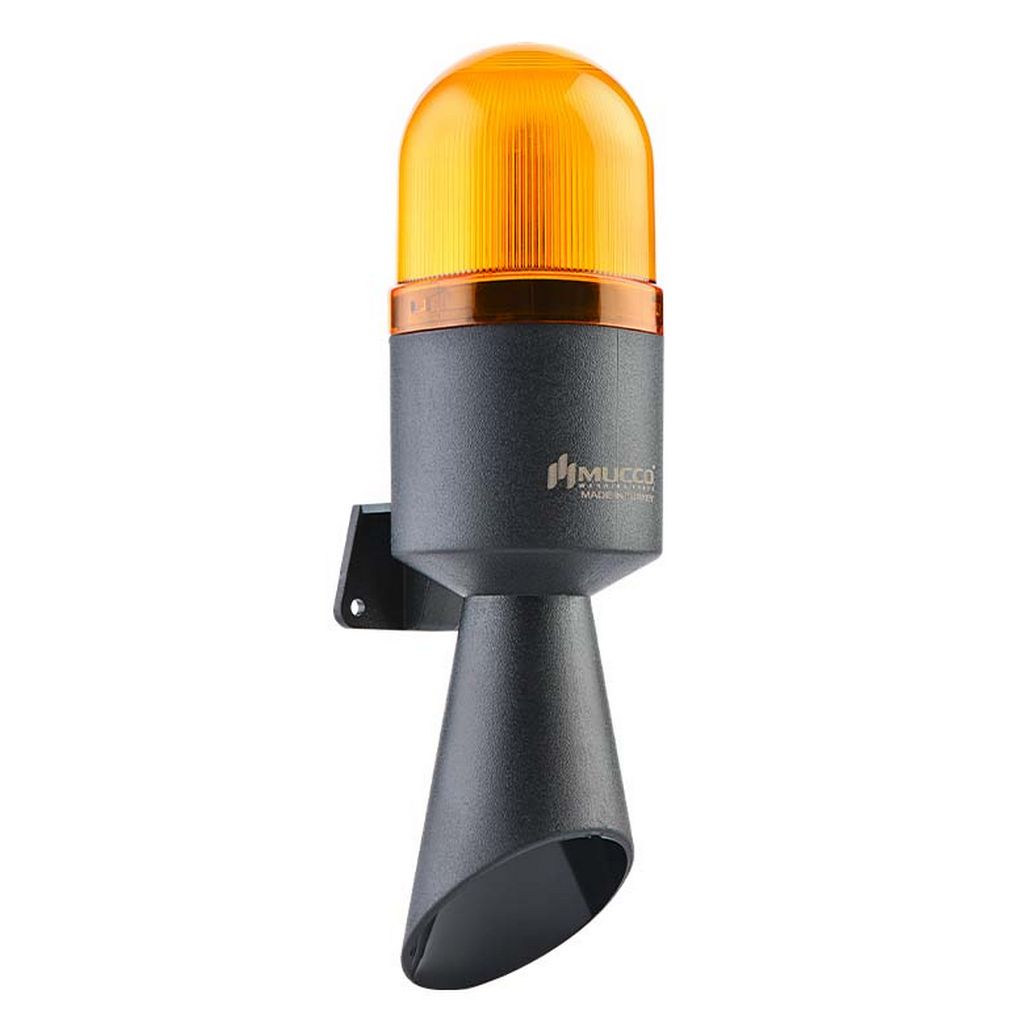

EB70 Industrial Warning Horns with 7 Tons
For bulk, quantity and project-based orders, please use
Request a Quote
to receive your special discounted pricing.
| Technical Data | |
|---|---|
| Body Material | ABS (Body), Polycarbonate (Lens) |
| Certificates & Warranty | 2 Year Warranty, CE, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Input Response Time | on/off: 10ms max. |
| Lens Color Options | Red, Green, Yellow, Blue, White |
| Lens Diameter | Ø70mm |
| Light Mode | Flashing, Rotary, Steady, Strobe |
| Light Source | SMD LED |
| Melody | 7 tone |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Sound Intensity | 124-130 dB at 1m (3.3ft) |
| Voltage Options | 12-24V AC/DC, 40-250V AC/DC |
| Current (max) | SNT-EB7013 series: | | 12-24V AC/DC | 102mA ±10% | - | - | SNT-EB7022 series: | | 40-250V AC/DC | 101mA ±10% 50-60 Hz | - | - |
|---|
Download
Sounds
Accessories

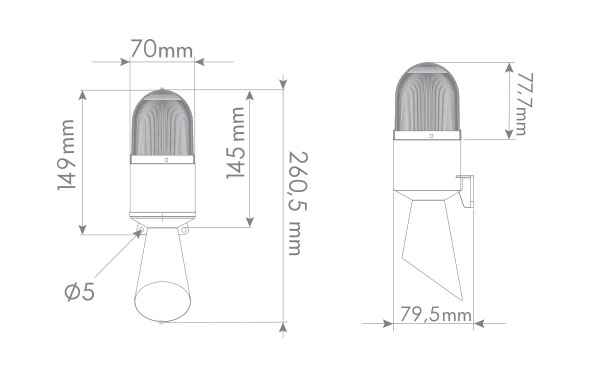

Dimensions
 | CAD Model STP (stp) Please send an e-mail to sales@muccosignal.com specifying the SKU code for the CAD Model of the product. |
EB70-Industrial-Warning-Horns-with-7-Tons-sound-1
EB70-Industrial-Warning-Horns-with-7-Tons-sound-2
EB70-Industrial-Warning-Horns-with-7-Tons-sound-3
EB70-Industrial-Warning-Horns-with-7-Tons-sound-4
EB70-Industrial-Warning-Horns-with-7-Tons-sound-5
EB70-Industrial-Warning-Horns-with-7-Tons-sound-6
EB70-Industrial-Warning-Horns-with-7-Tons-sound-7
EB70-Industrial-Warning-Horns-with-7-Tons-sound-8
