| Technical Data | |
|---|---|
| Body Material | ABS (Body), Polycarbonate (Lens) |
| Buzzer Options | No, Yes |
| Certificates & Warranty | 2 Year Warranty, CE, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Extension Tube | 10cm, 20cm, 30cm, Without Extension |
| Input Response Time | on/off: 10ms max. |
| Lens Color Options | Red, Green, Yellow, Blue, White |
| Lens Diameter | Ø70mm |
| Light Mode | Flashing, Rotary, Steady, Strobe |
| Light Source | SMD LED |
| Melody | 2 Tone |
| Mounting Type | Foldable Base, Surface, Wall |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Sound Intensity | 103-116dB at 1m (3.3ft) |
| Voltage Options | 12-24V AC/DC, 220V/AC, 24V/DC, 40-250V AC/DC |
| Current (max) | 10mA @220V/AC, 10mA @40-250V AC/DC, 55mA @12-24V AC/DC, 85mA @ 24V/DC |
|---|
-
Download -
Sounds -
Accessories -

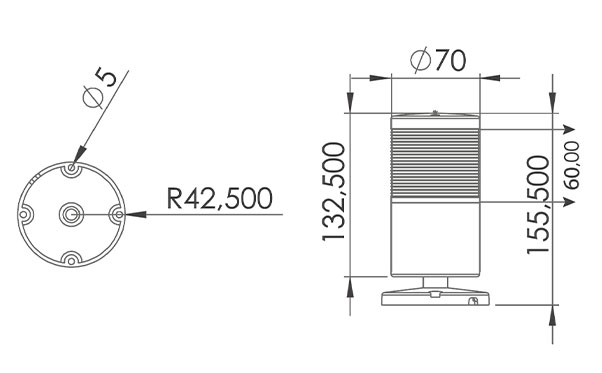

Dimensions
 |
CAD Model STP (stp)
Please send an e-mail to [email protected] specifying the SKU code for the CAD Model of the product.
|
Stack Light Sound 1
Stack Light Sound 2
-
Spare Parts
Ø70 Open Lens
$15,00
Select options
This product has multiple variants. The options may be chosen on the product pageQuick View -
Spare Parts
Fixed Led Modules
$10,00
Select options
This product has multiple variants. The options may be chosen on the product pageQuick View -
Spare Parts
Strobing-Rotary Led Modules
$15,00
Select options
This product has multiple variants. The options may be chosen on the product pageQuick View -
-
-
