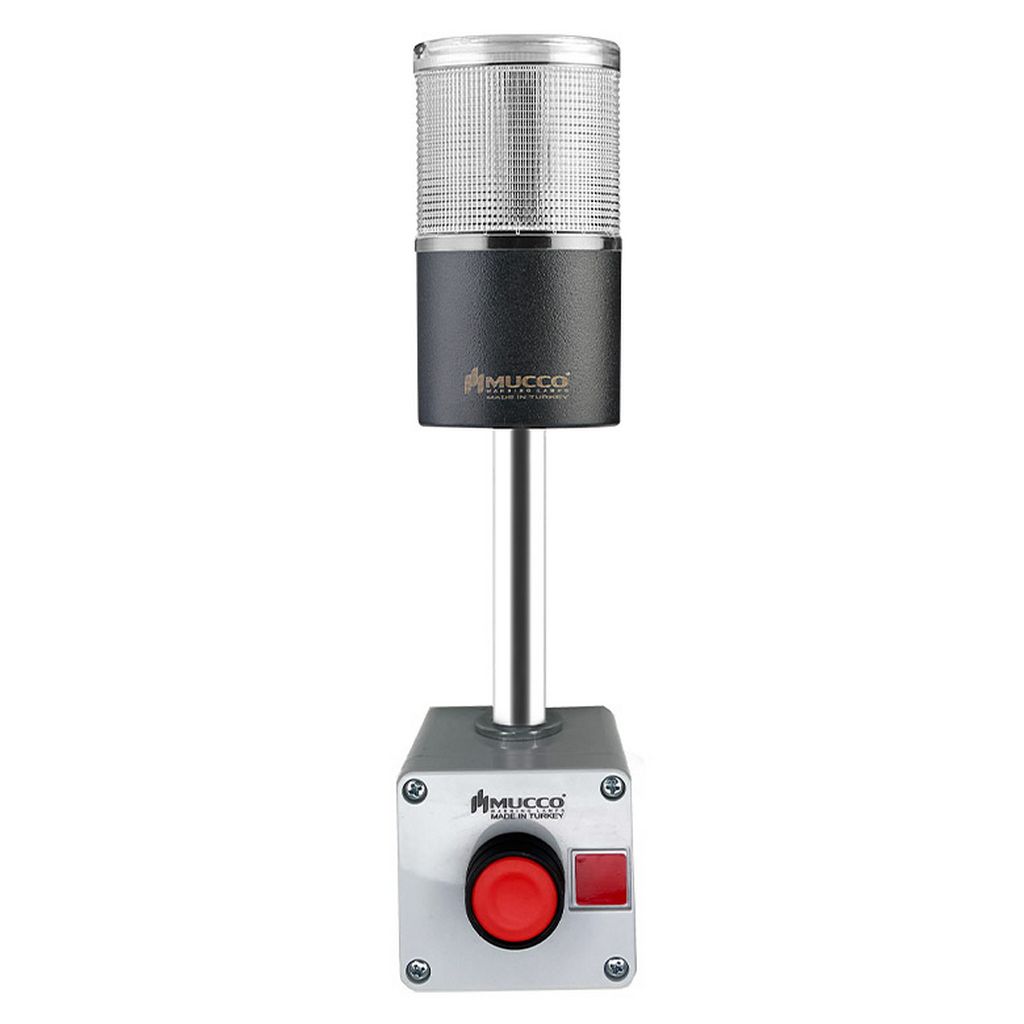

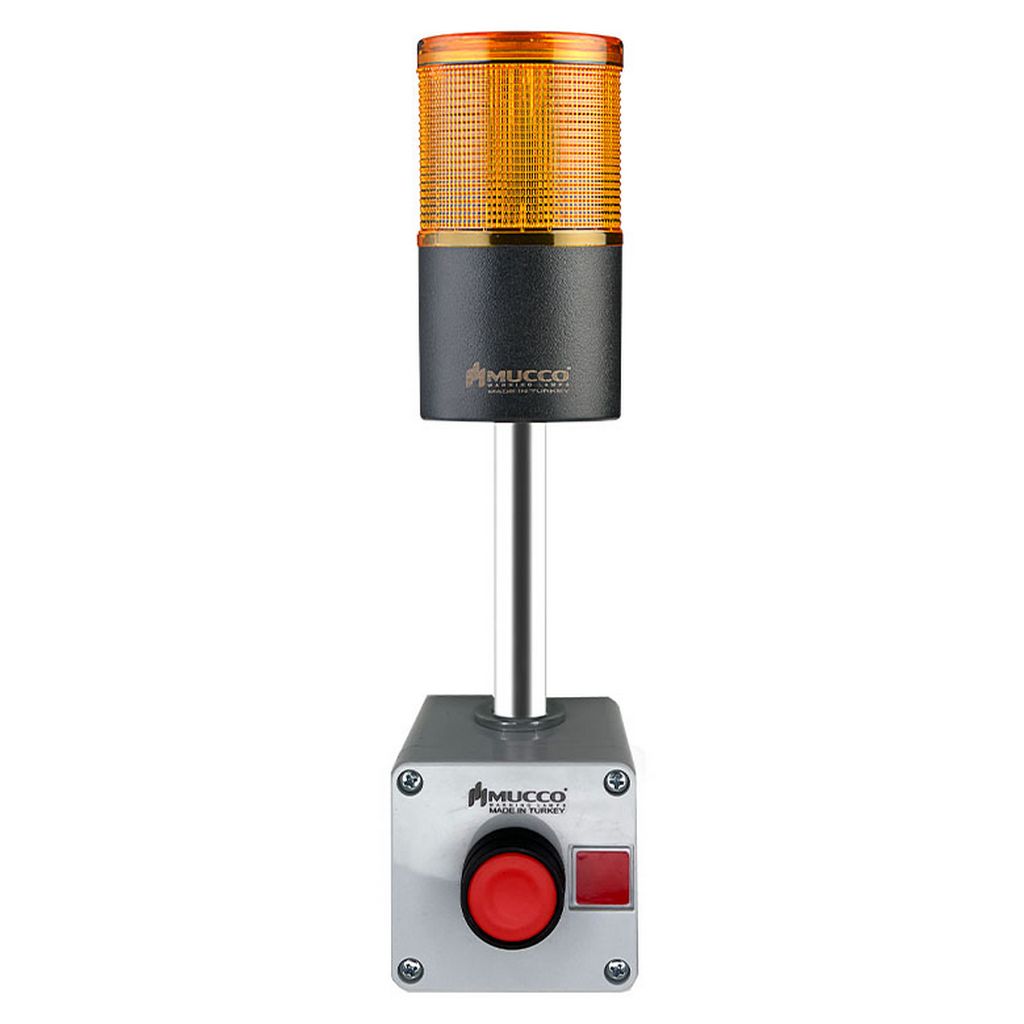

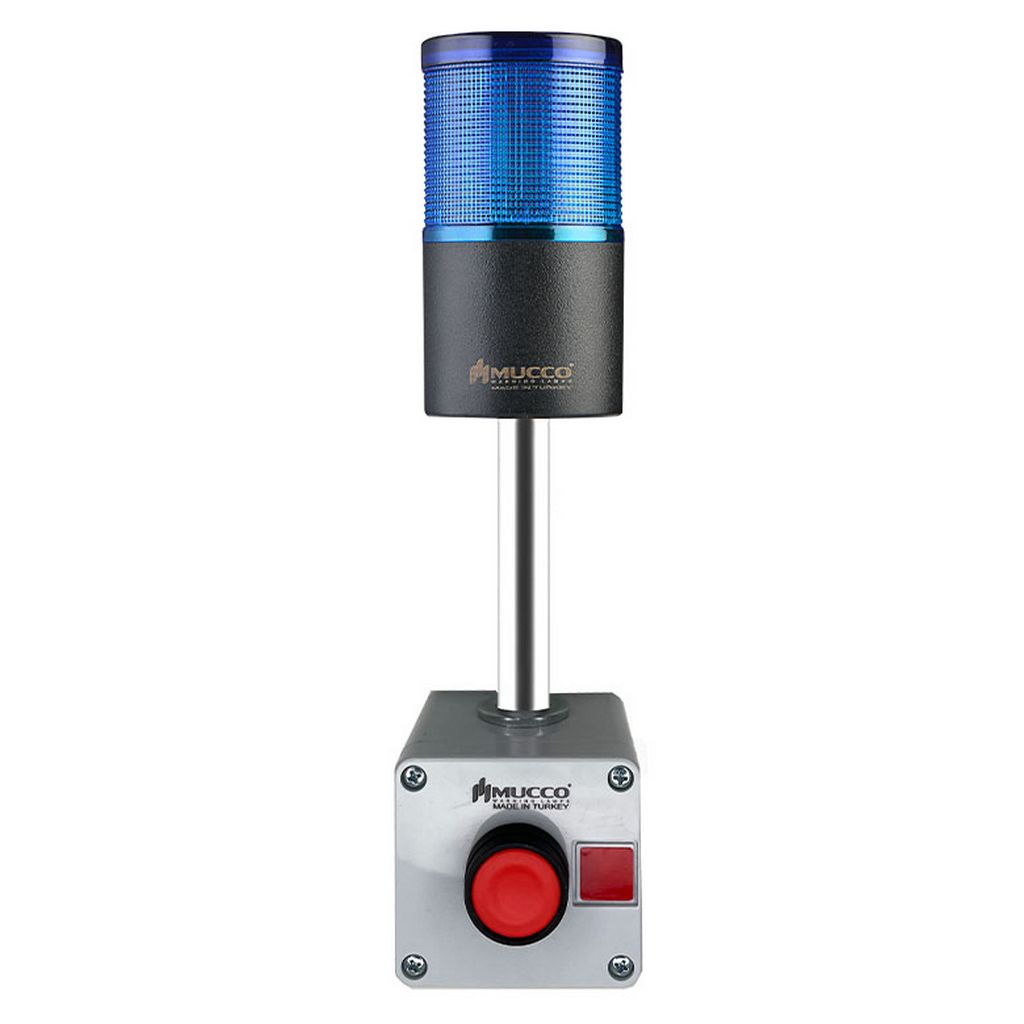

Led Andon Kit Stack Light With One Layer
SKU: SNT-72AM-C1-1-10U-SET
For bulk, quantity and project-based orders, please use
Request a Quote
to receive your special discounted pricing.
| Technical Data | |
|---|---|
| Body Material | ABS (Body), Polycarbonate (Lens) |
| Button Options | Push Button |
| Buzzer Options | No, Yes |
| Certificates & Warranty | 2 Year Warranty, CE, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Extension Tube | 10cm, 20cm, 30cm |
| Input Response Time | on/off: 10ms max. |
| Lens Color Options | Red, Green, Yellow, Blue, White |
| Lens Diameter | Ø70mm |
| Light Mode | Flashing, Rotary, Steady, Strobe |
| Light Source | SMD LED |
| Melody | 2 Tone |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Sound Intensity | 103-116dB at 1m (3.3ft) |
| Voltage Options | 12-24V AC/DC, 40-250V AC/DC |
| Current (max) | 40-250V AC/DC |
|---|
