Hot
Warning Horns
For bulk, quantity and project-based orders, please use
Request a Quote
to receive your special discounted pricing.
| Technical Data | |
|---|---|
| Body Material | ABS (Body), Polycarbonate (Lens) |
| Certificates & Warranty | 2 Year Warranty, CE, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Input Response Time | on/off: 10ms max. |
| Lens Color Options | Red, Green, Yellow, Blue, White |
| Lens Diameter | Ø70mm |
| Light Mode | Flashing |
| Light Source | SMD LED |
| Melody | 1 tone |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Sound Intensity | 120-125 dB at 1m (3.3ft) |
| Voltage Options | 24V AC/DC, 40-250V AC/DC |
| Current (max) | SNT-B710 series: 24V AC/DC | 150mA ±10% - | - SNT-B720 series: 40-250V AC/DC | 37mA ±10% 50-60 Hz - | - |
|---|
-
Download -
Sounds -

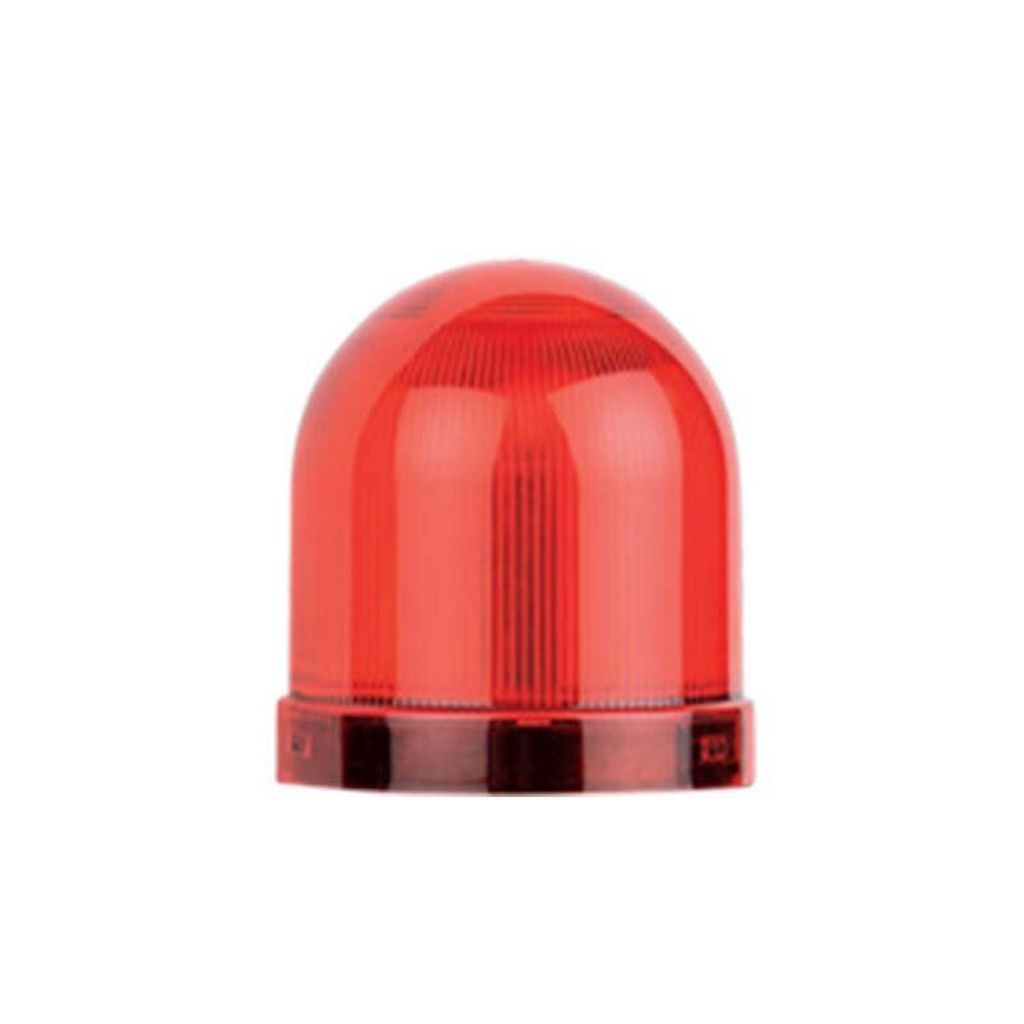

Accessories -

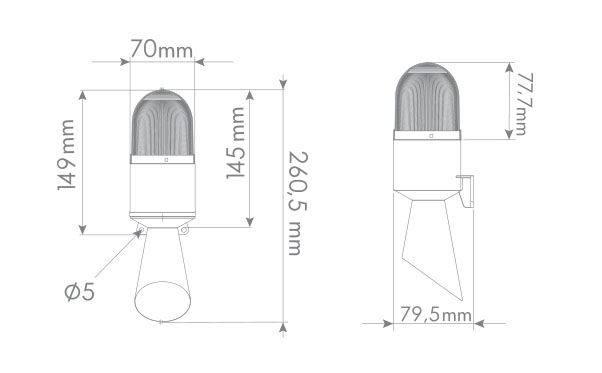

Dimensions
 |
CAD Model STP (stp)
Please send an e-mail to sales@muccosignal.com specifying the SKU code for the CAD Model of the product.
|
Warning-Horns-sound-1
