DU125 Series Heavy Duty Warning Light
For bulk, quantity and project-based orders, please use
Request a Quote
to receive your special discounted pricing.
| Technical Data | |
|---|---|
| Body Material | Metal Casting (Body), Polycarbonate (Lens) |
| Buzzer Options | No, Yes |
| Certificates & Warranty | 2 Year Warranty, CE, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Input Response Time | on/off: 10ms max. |
| Lens Color Options | Red, Green, Yellow, Blue, White |
| Lens Diameter | Ø125mm |
| Light Mode | Strobe |
| Light Source | 5x3W Power LED |
| Melody | 10 tones Internal button change |
| Note | !!!!! Standard light mode production: Strobe. For Steady-Flashing-Rotary Light modes contact the company. |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Sound Intensity | 90-126dB at 1m (3.3ft) |
| Voltage Options | 12-24V AC/DC, 85-250V AC/DC |
Download
Sounds
Accessories

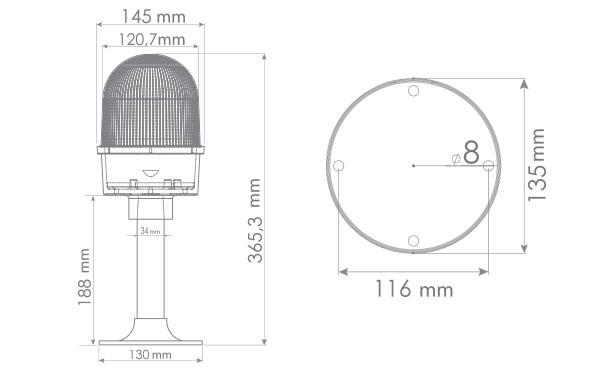

Dimensions
 | CAD Model STP (stp) Please send an e-mail to sales@muccosignal.com specifying the SKU code for the CAD Model of the product. |
DU125-Series-Heavy-Duty-Warning-Light-sound-1
DU125-Series-Heavy-Duty-Warning-Light-sound-2
DU125-Series-Heavy-Duty-Warning-Light-sound-3
DU125-Series-Heavy-Duty-Warning-Light-sound-4
DU125-Series-Heavy-Duty-Warning-Light-sound-5
DU125-Series-Heavy-Duty-Warning-Light-sound-6
DU125-Series-Heavy-Duty-Warning-Light-sound-7
DU125-Series-Heavy-Duty-Warning-Light-sound-8
DU125-Series-Heavy-Duty-Warning-Light-sound-9
DU125-Series-Heavy-Duty-Warning-Light-sound-10
