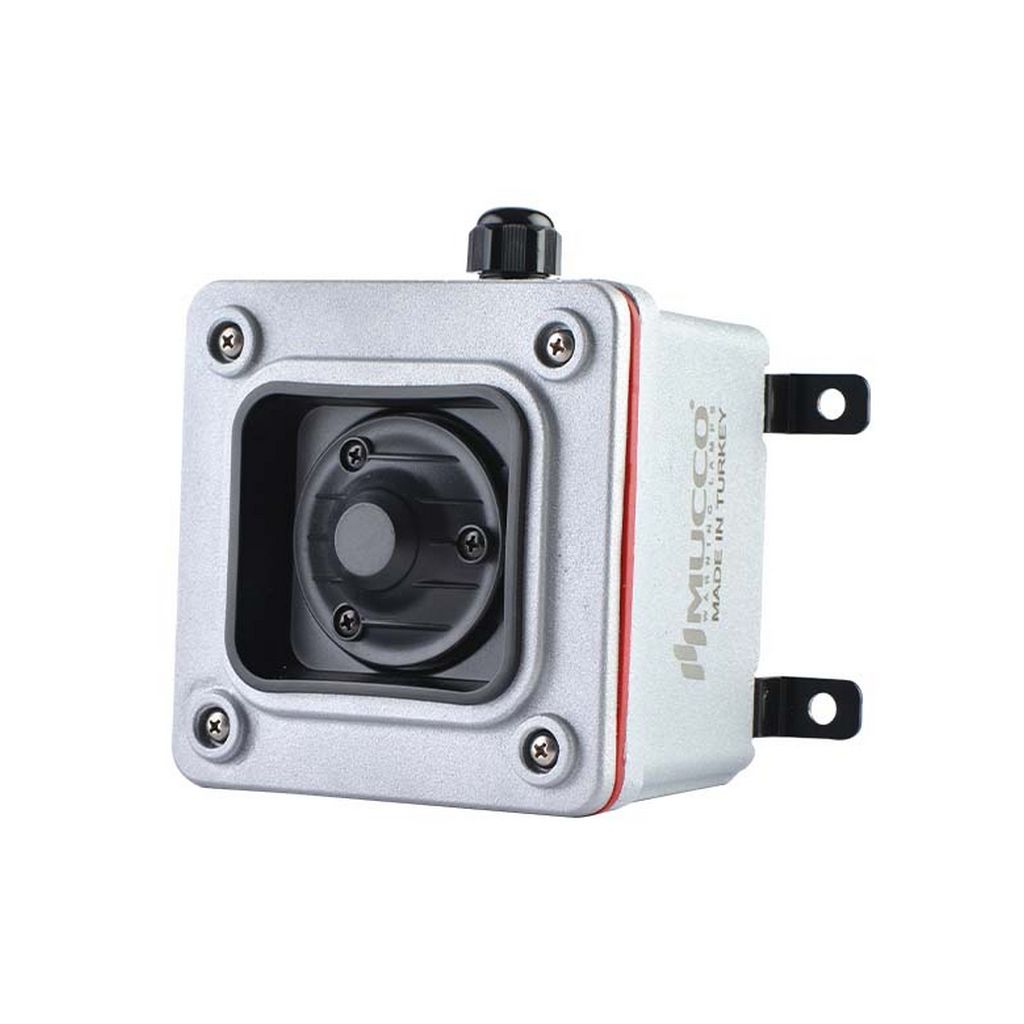

ES120 Series Heavy Duty Warning Horn
For bulk, quantity and project-based orders, please use
Request a Quote
to receive your special discounted pricing.
| Technical Data | |
|---|---|
| Body Material | Metal Casting (Body) |
| Certificates & Warranty | 2 Year Warranty, CE, EAC, ISO-9001, RoSH2 |
| Connection | Wire |
| Degree of Protection | IP65 |
| Expected Life | Min. 50.000 hrs |
| Input Response Time | on/off: 10ms max. |
| Lens Diameter | - |
| Light Source | - |
| Melody | 7 tones Wire control |
| Operation Conditions | -20°C to +50°C (-4°F to +122°F) |
| Protection | Dust, Heat, UV Ray Resistant, Water |
| Sound Intensity | 125-133dB at 1m (3.3ft) |
| Voltage Options | 12-30V/DC, 40-250V AC/DC, 48V/DC |
| Current (max) | SNT-ES120 series: SNT-ES120-13 | 12-30V/DC | 473mA ±10% SNT-ES120-48 | 48V/DC | 183mA ±10% SNT-ES120-22 | 85-250V AC/DC | 95mA ±10% 50-60 Hz - | - |
|---|
Download
Sounds
Accessories

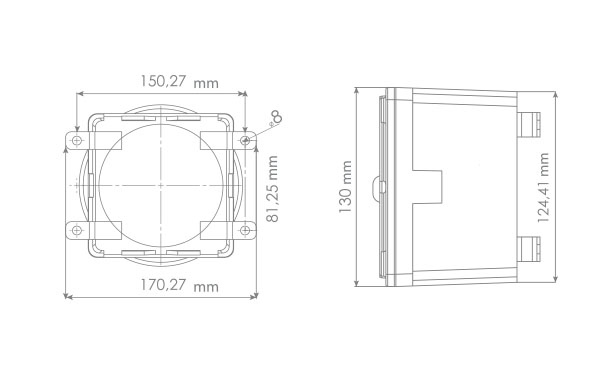

Dimensions
 | CAD Model STP (stp) Please send an e-mail to sales@muccosignal.com specifying the SKU code for the CAD Model of the product. |
